Regulaatorid

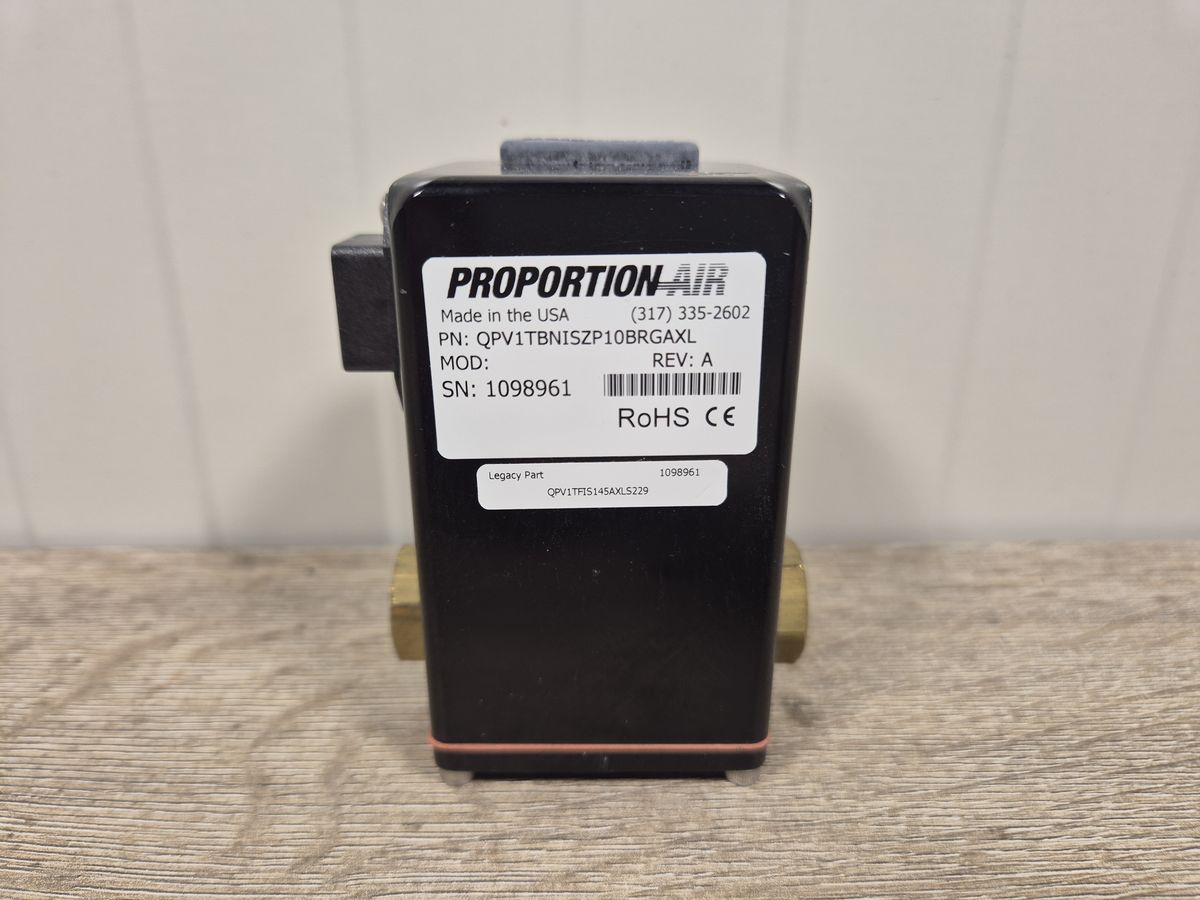

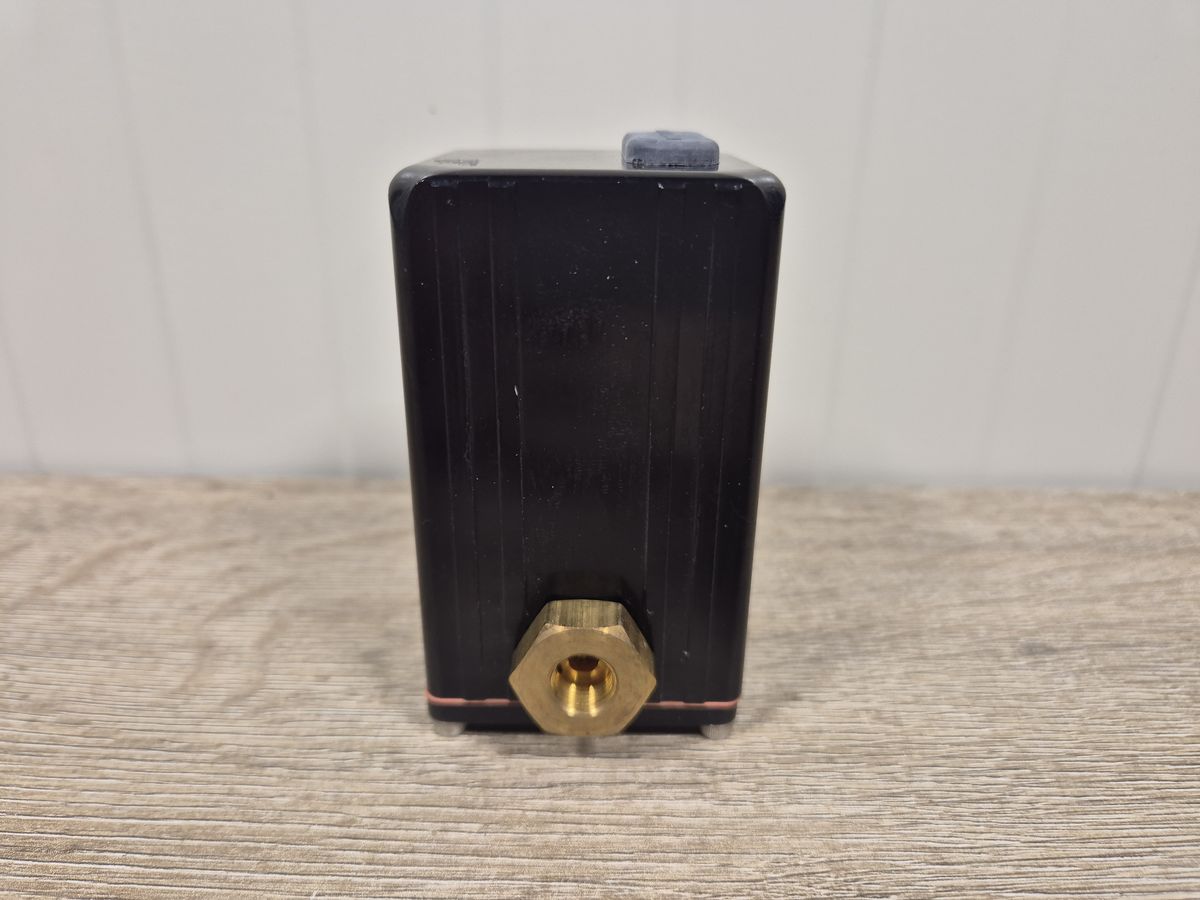

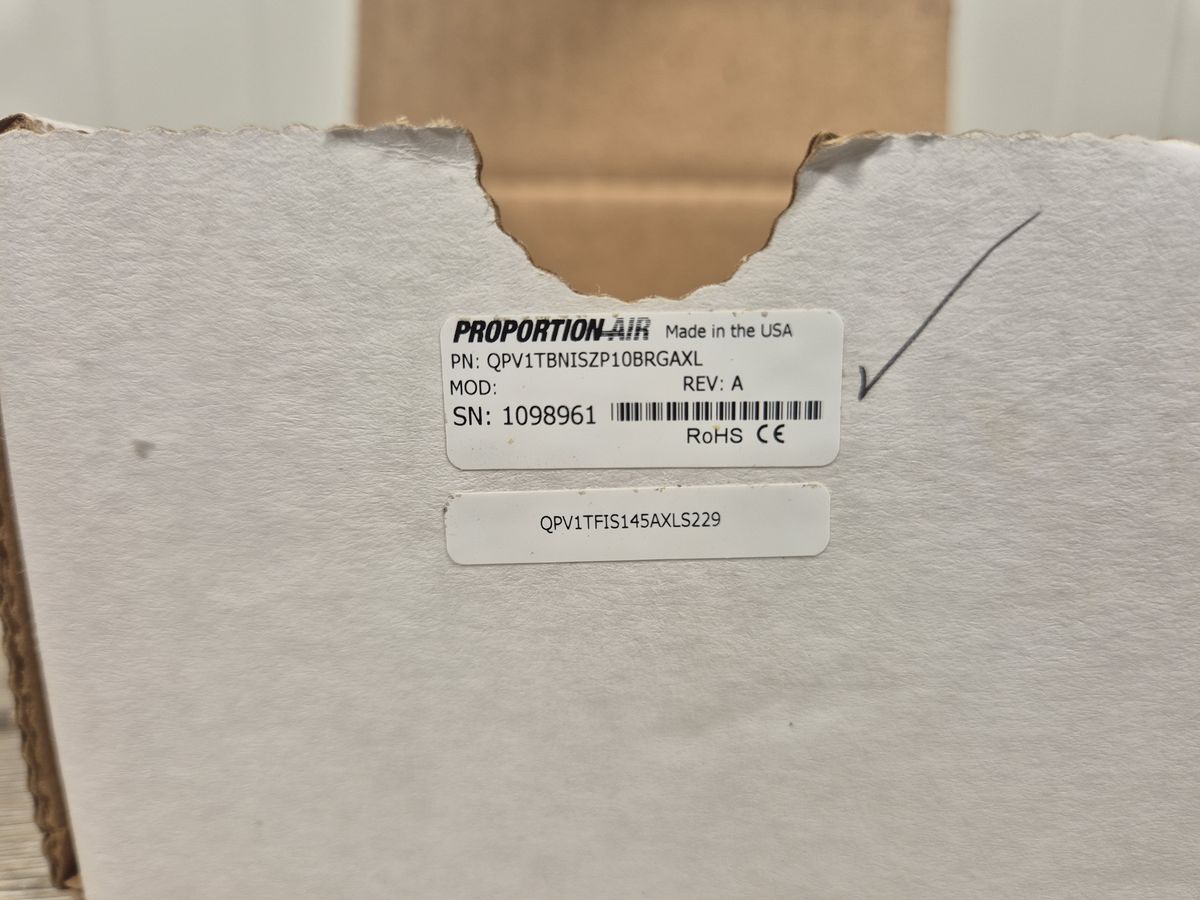

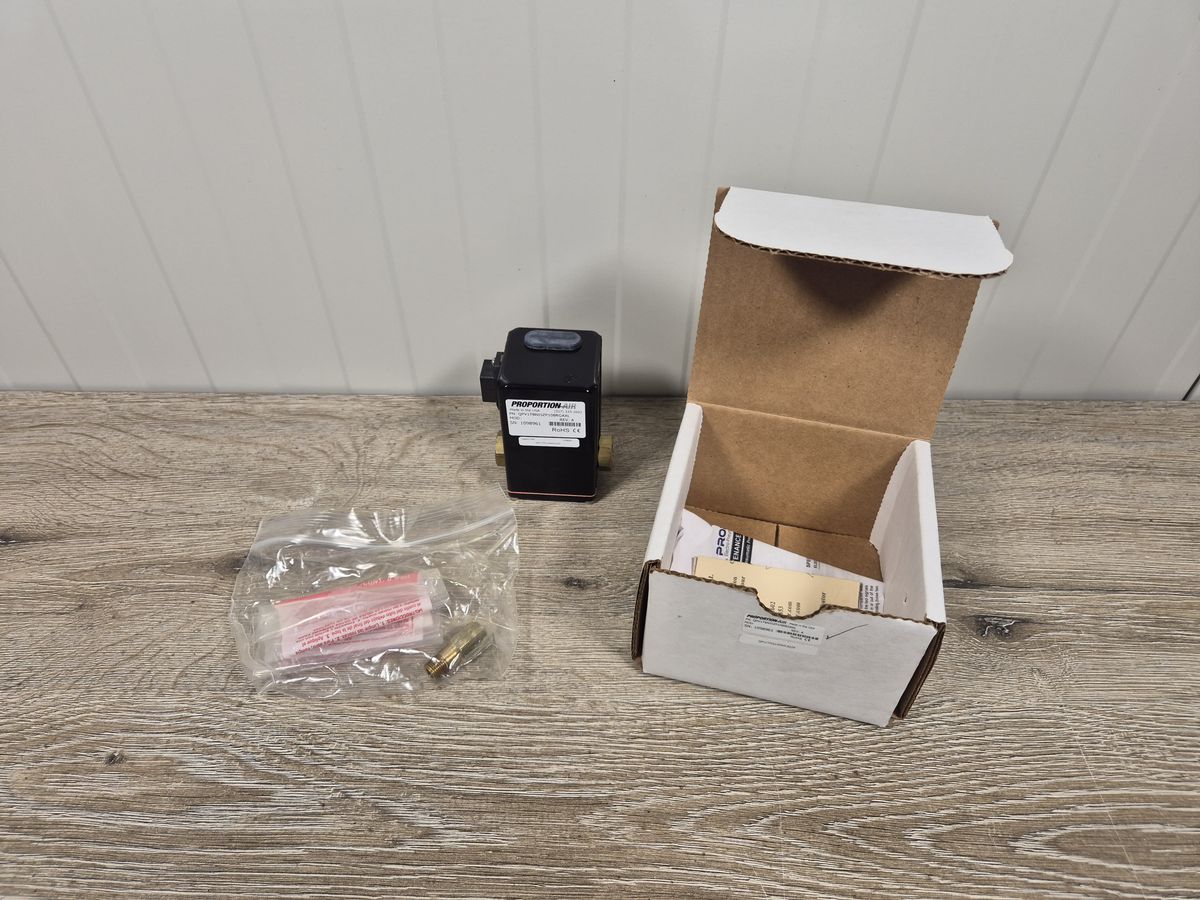

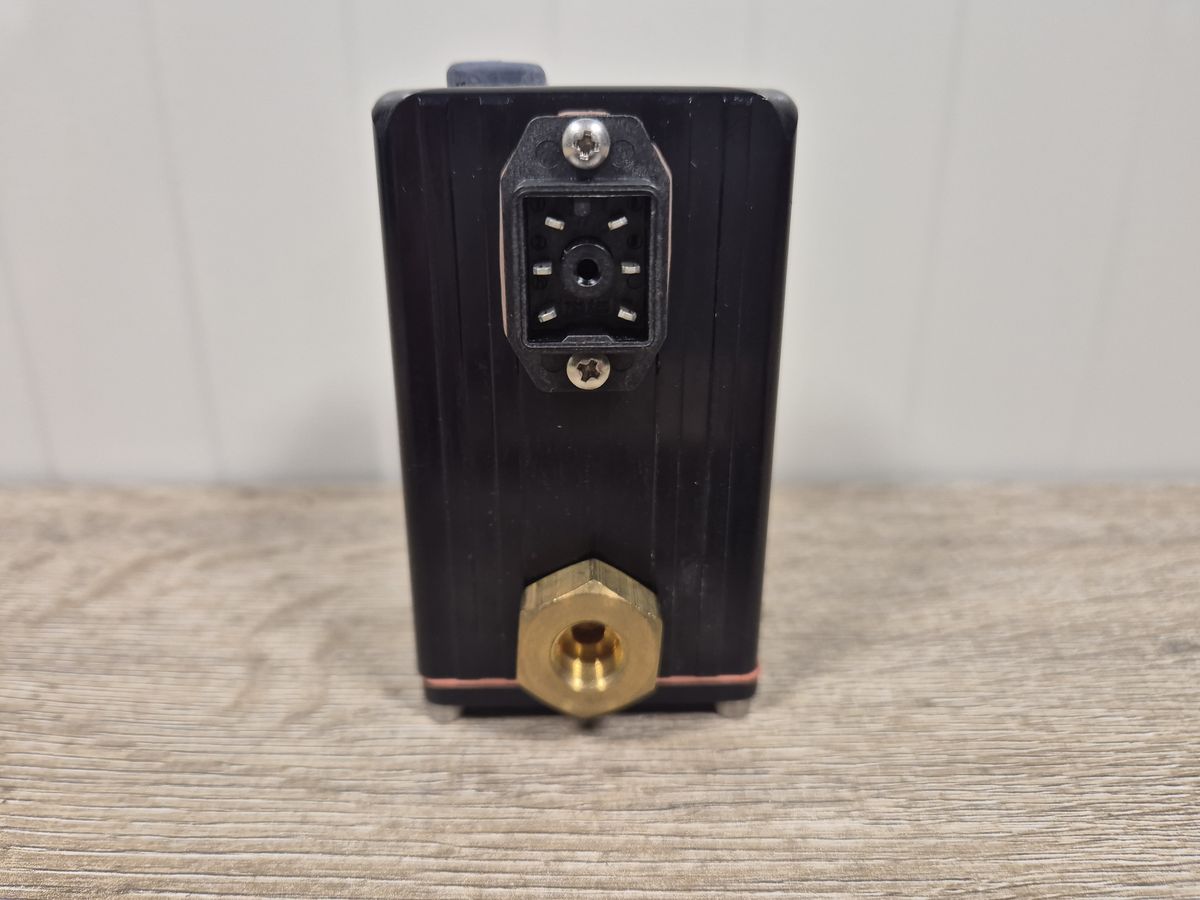

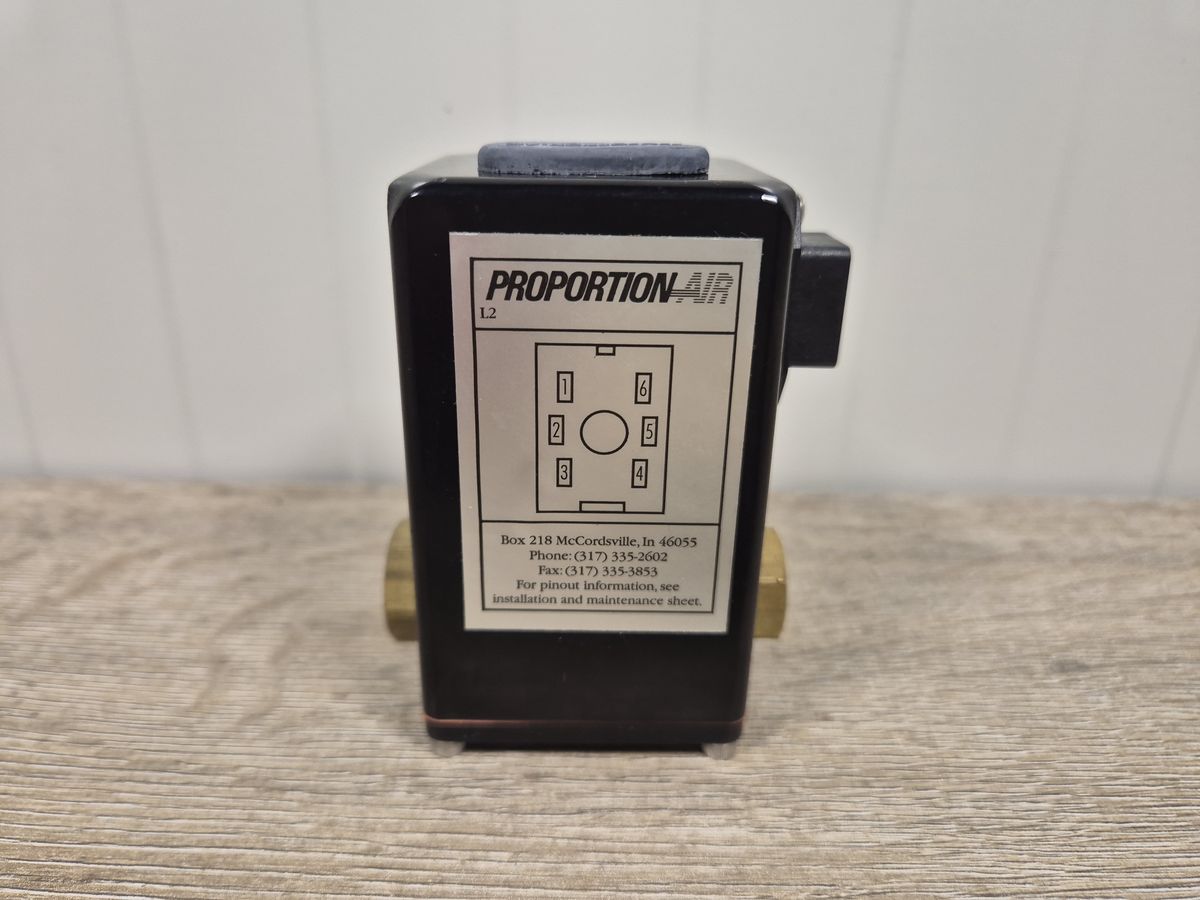

Proportion-Air QPV1TBNISZP10BRGAXL

SKU: 8043

Laos

Vali seisund

New

Ilma KM-ta: €220,00 (1 saadaval)

K.a. KM: €266,20

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Kvaliteedi garantii teave

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud DOA

Kasutatud DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Kirjeldus

The Proportion-Air QPV1 is an ultra-high resolution electro-pneumatic closed-loop proportional pressure regulator. It utilizes a true proportional variable orifice inlet valve and an exhaust solenoid to achieve precise, continuous pressure control without digital stepping. Designed for demanding applications such as leak testing, dispensing, and microfluidics, it accepts electrical command signals and provides an integrated analog monitor output.

Specifications – QPV1TBNISZP10BRGAXL

Parameter	Specification
Part Number	QPV1TBNISZP10BRGAXL
Legacy Part Number	QPV1TFIS145AXLS229
Revision	A
Pressure Range	0 - 10 bar gauge
Country of Manufacture	USA
Certifications	CE, RoHS
