finder 95.85.3 / Type 40.52
SKU: 24003
Laos
Kvaliteedi garantii teave
Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

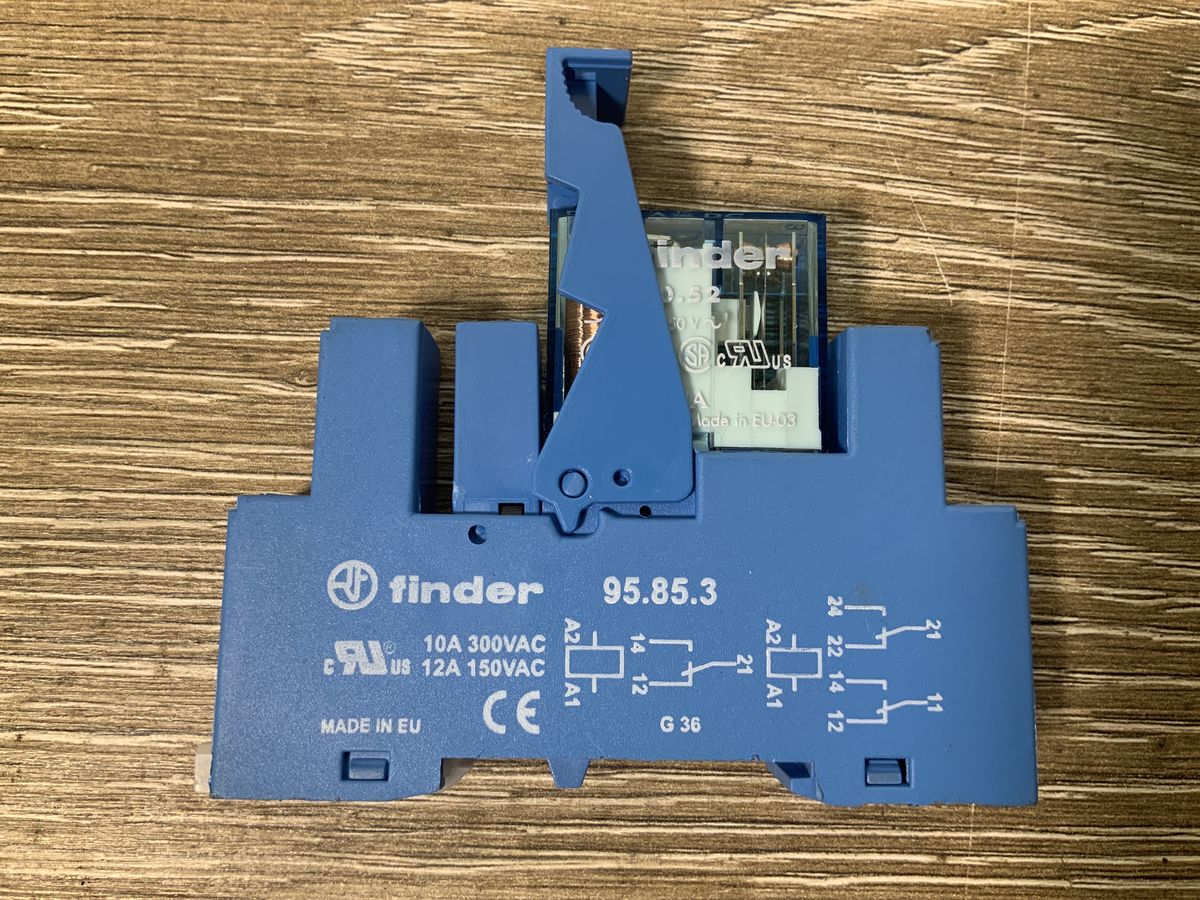

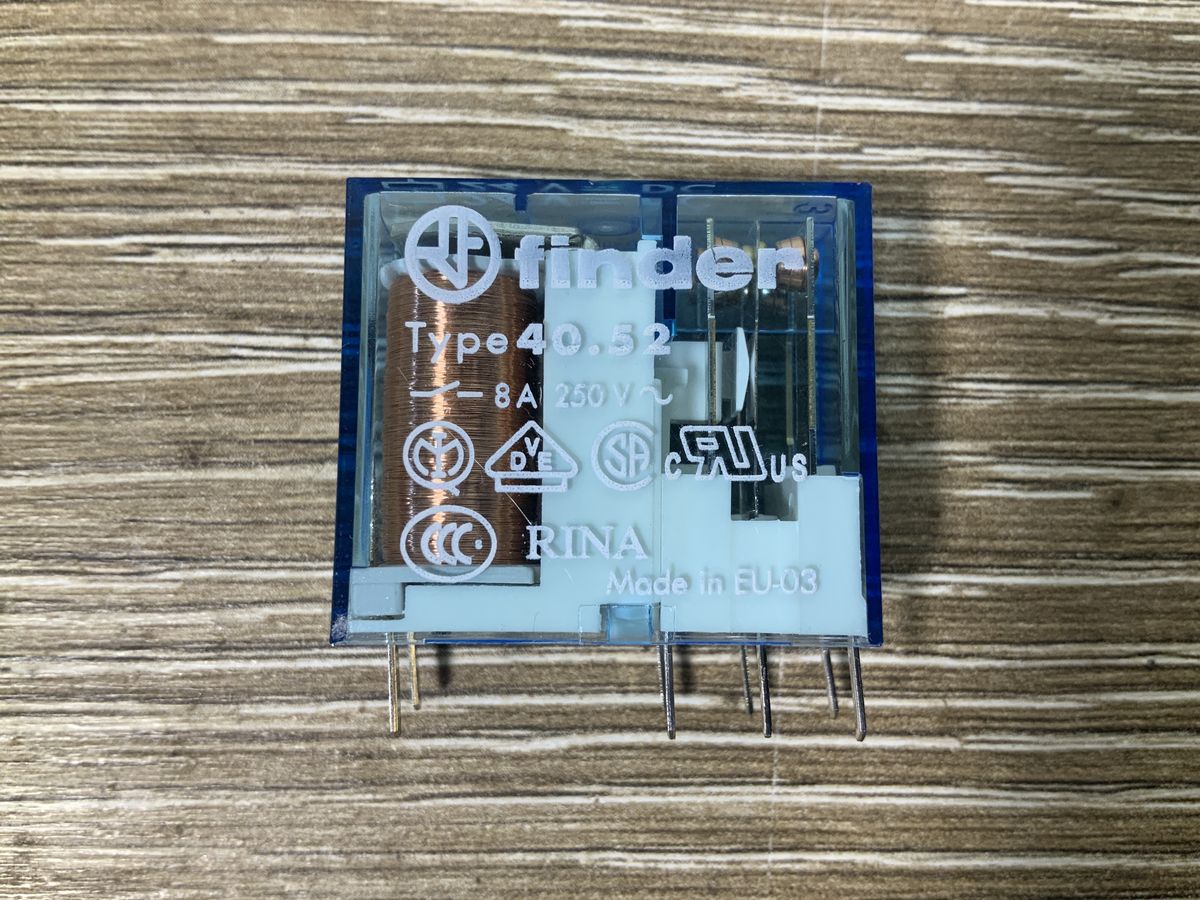

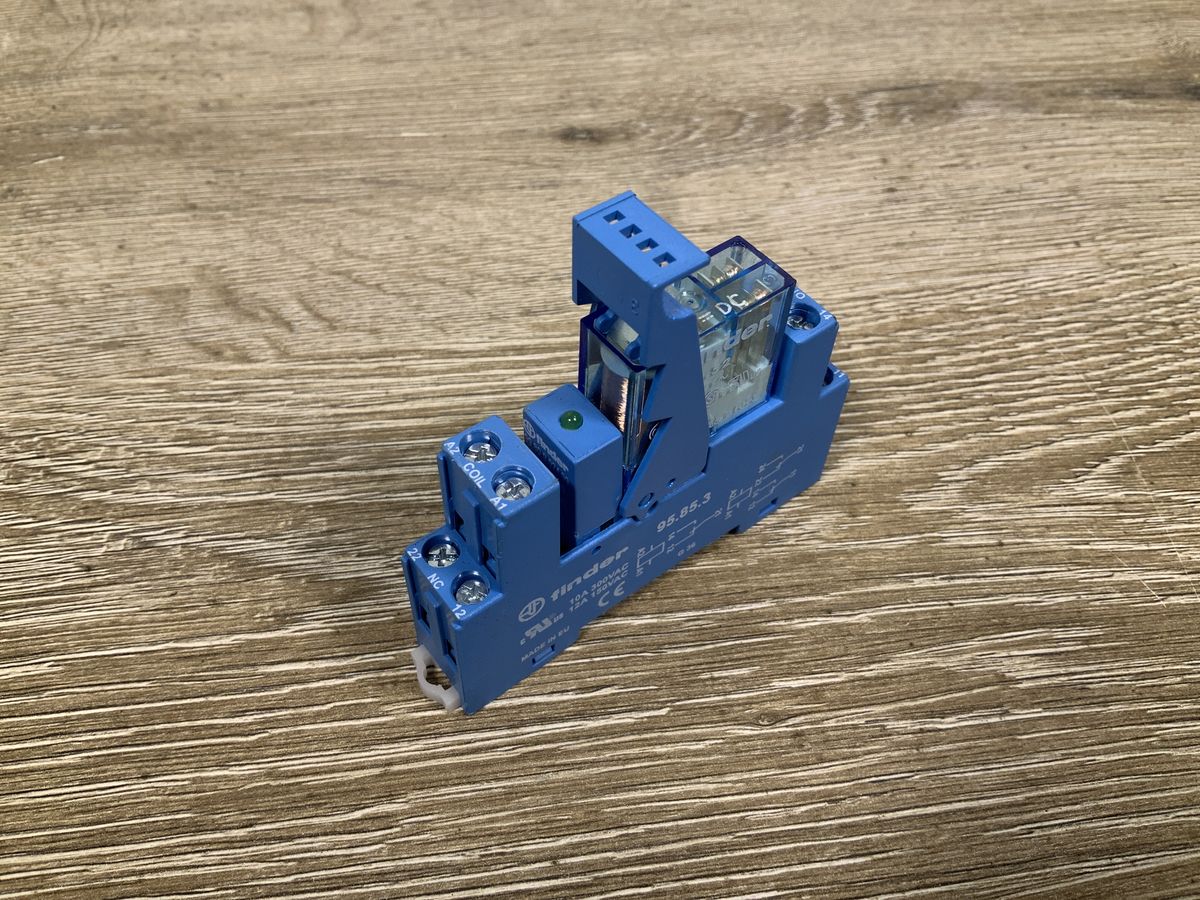

The Finder 95.85.3 is a DIN-rail or panel-mount relay socket equipped with a Finder Type 40.52 plug-in miniature power relay. It features screw terminals for secure wiring and an integrated plastic retaining clip. Designed for switching applications up to 8 A at 250 V AC with a 24 V DC coil rating.
Specifications – 95.85.3 / Type 40.52
| Parameter | Specification |
|---|---|
| Socket Model | 95.85.3 |
| Relay Model | Type 40.52 |
| Coil Voltage | 24 V DC |
| Relay Rating | 8 A / 250 V AC |
| Socket Voltage Rating | 10 A 300 V AC / 12 A 150 V AC |
| Mounting Type | 35 mm DIN Rail / Panel Mount |
| product_type | Screw terminal (Box clamp) relay socket (datasheet) |
| mounting | Panel or 35 mm rail mount (EN 60715) (datasheet) |
| rated_current | 10 A (datasheet) |
| rated_voltage | 250 V (datasheet) |
| dielectric_strength | 6 kV (1.2/50 µs) between coil and contacts (datasheet) |
| protection_category | IP20 (datasheet) |
| ambient_temperature | -40...+70 °C (datasheet) |
| screw_torque | 0.5 Nm (datasheet) |
| wire_strip_length | 8 mm (datasheet) |
| dimensions_w_x_h_x_d | 15.5 x 81.9 x 46.8 mm (datasheet) |
| compatible_relay_series | Finder 40 Series (40.51, 40.52, 40.61, 40.62) and 44 Series (44.52, 44.62) (datasheet) |
×
![]()
