Pneumaatilised Filtri Regulaatorid

Festo LFR-D-MINI / HE-D-MINI

SKU: 53002

Laos

Vali seisund

Used

Ilma KM-ta: €60,00 (1 saadaval)

K.a. KM: €72,60

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Kvaliteedi garantii teave

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud 6 kuud

Kasutatud 3 kuud

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Kirjeldus

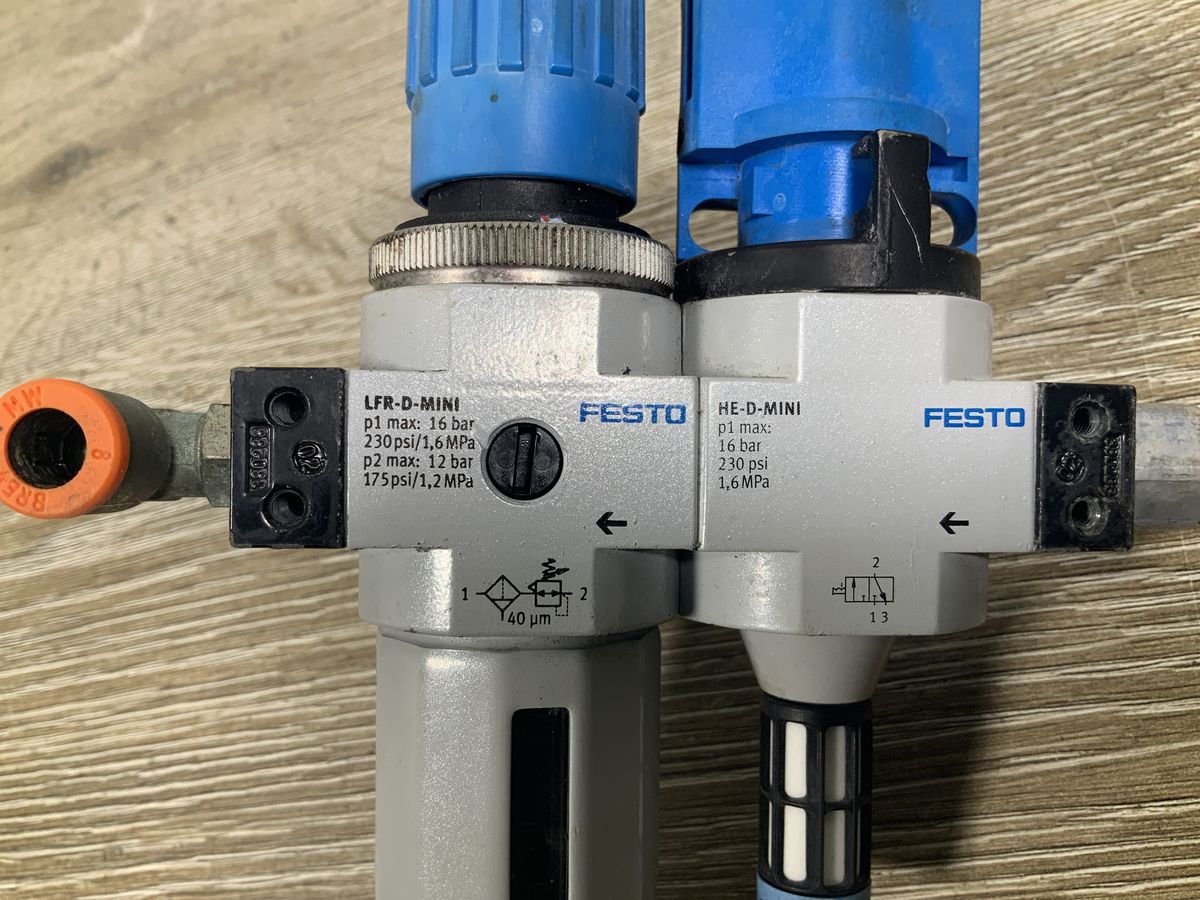

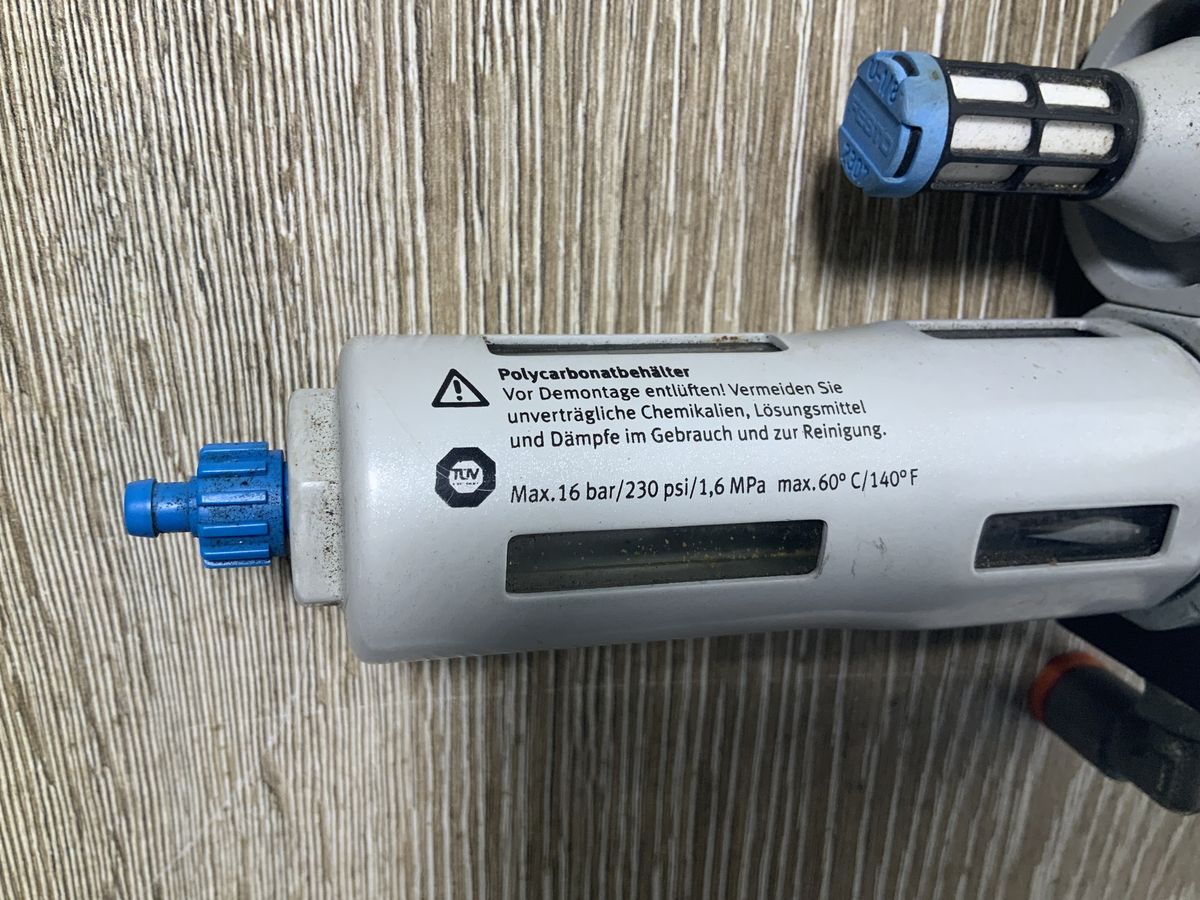

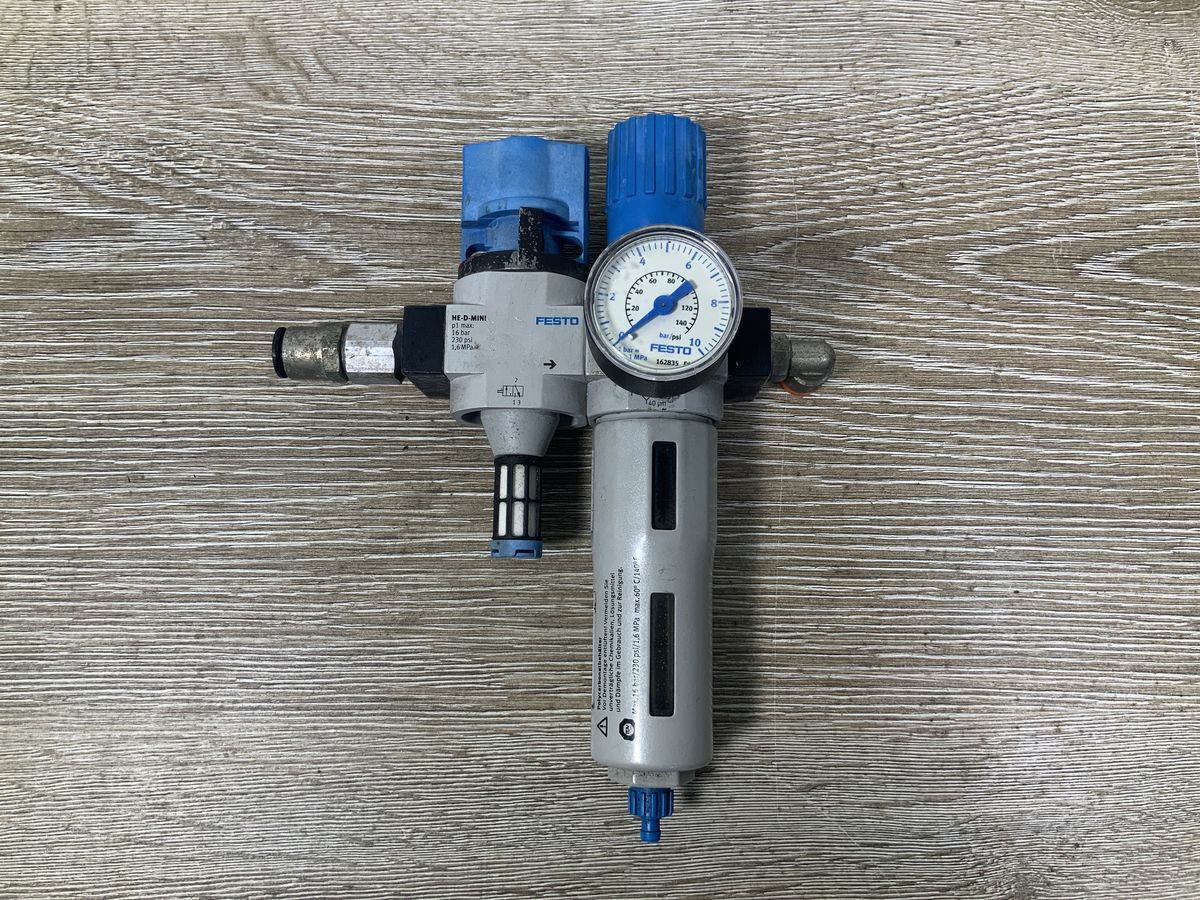

The Festo LFR-D-MINI / HE-D-MINI is a compact pneumatic service unit assembly combining an air filter regulator with a manual shut-off valve. Designed for compressed air preparation, it regulates downstream pressure up to 12 bar and filters solid contaminants down to 40 µm. It features a pressure gauge and a polycarbonate condensate bowl with bowl guard.

Specifications – LFR-D-MINI / HE-D-MINI

Parameter	Specification
Filter Regulator Model	LFR-D-MINI
Shut-Off Valve Model	HE-D-MINI
Filtration Grade	40 µm
Max. Inlet Pressure (p1 max)	16 bar / 230 psi / 1.6 MPa
Max. Outlet Pressure (p2 max)	12 bar / 175 psi / 1.2 MPa
Max. Temperature	60 °C / 140 °F
