Pneumaatilised aktuaatorid

Festo DNU-32-50-PPV-A

SKU: 4038

Laos

Vali seisund

Used

Ilma KM-ta: €30,00 (1 saadaval)

K.a. KM: €36,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Kvaliteedi garantii teave

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud DOA

Kasutatud DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Kirjeldus

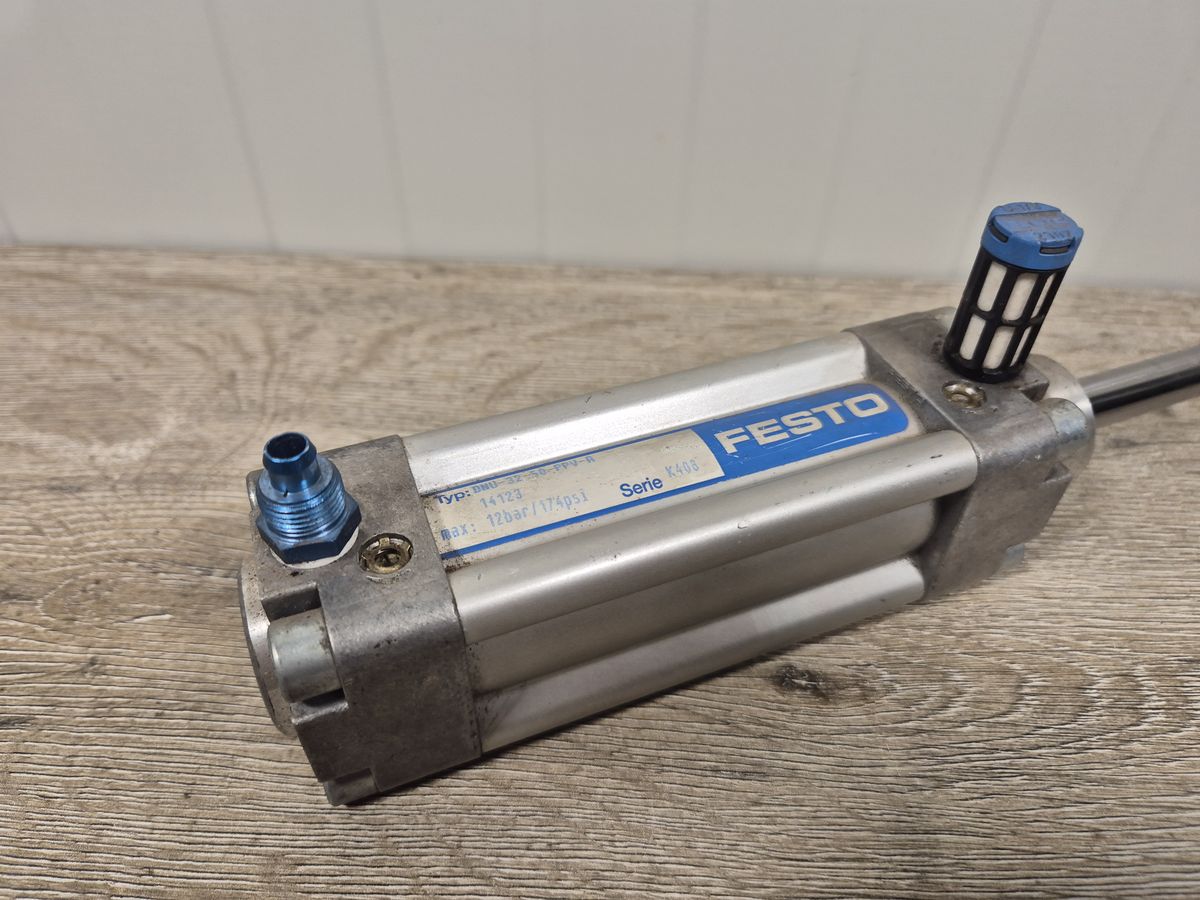

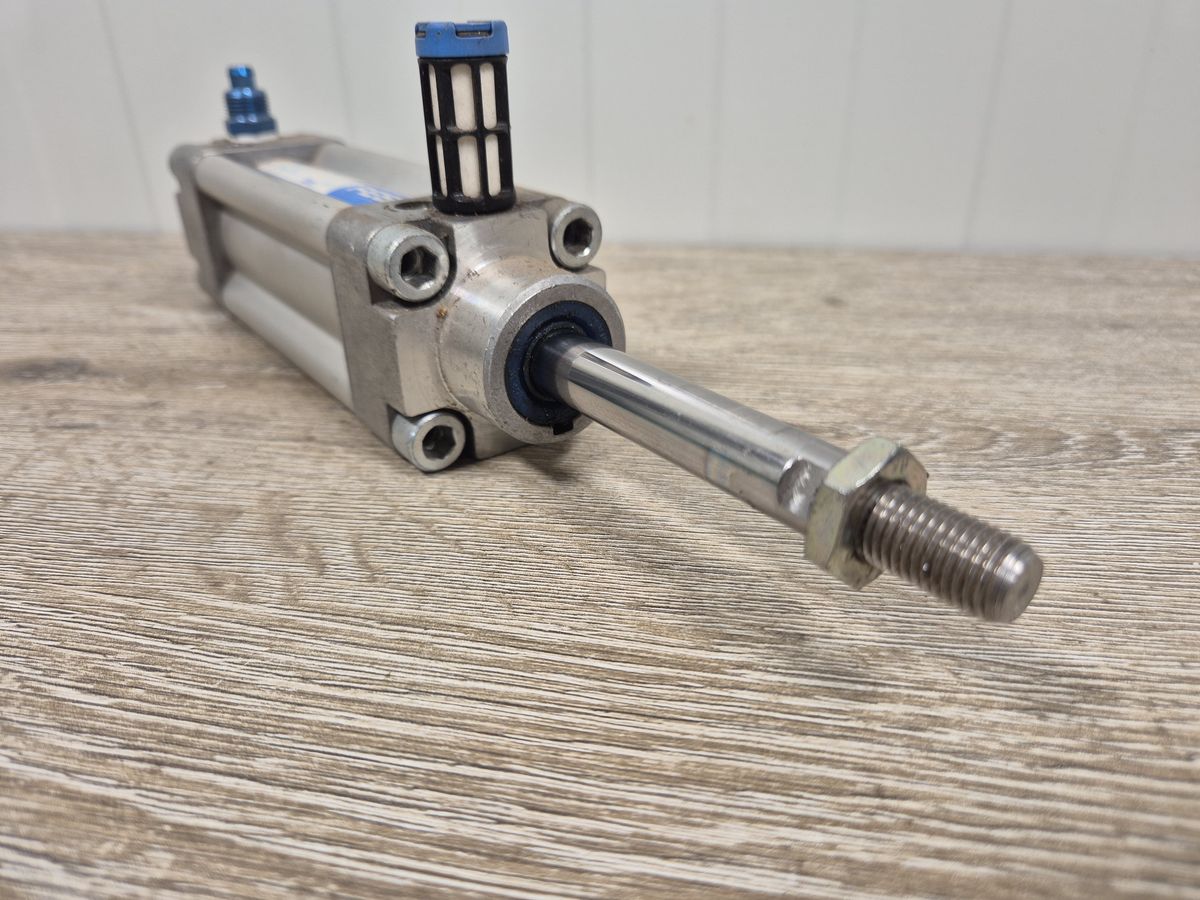

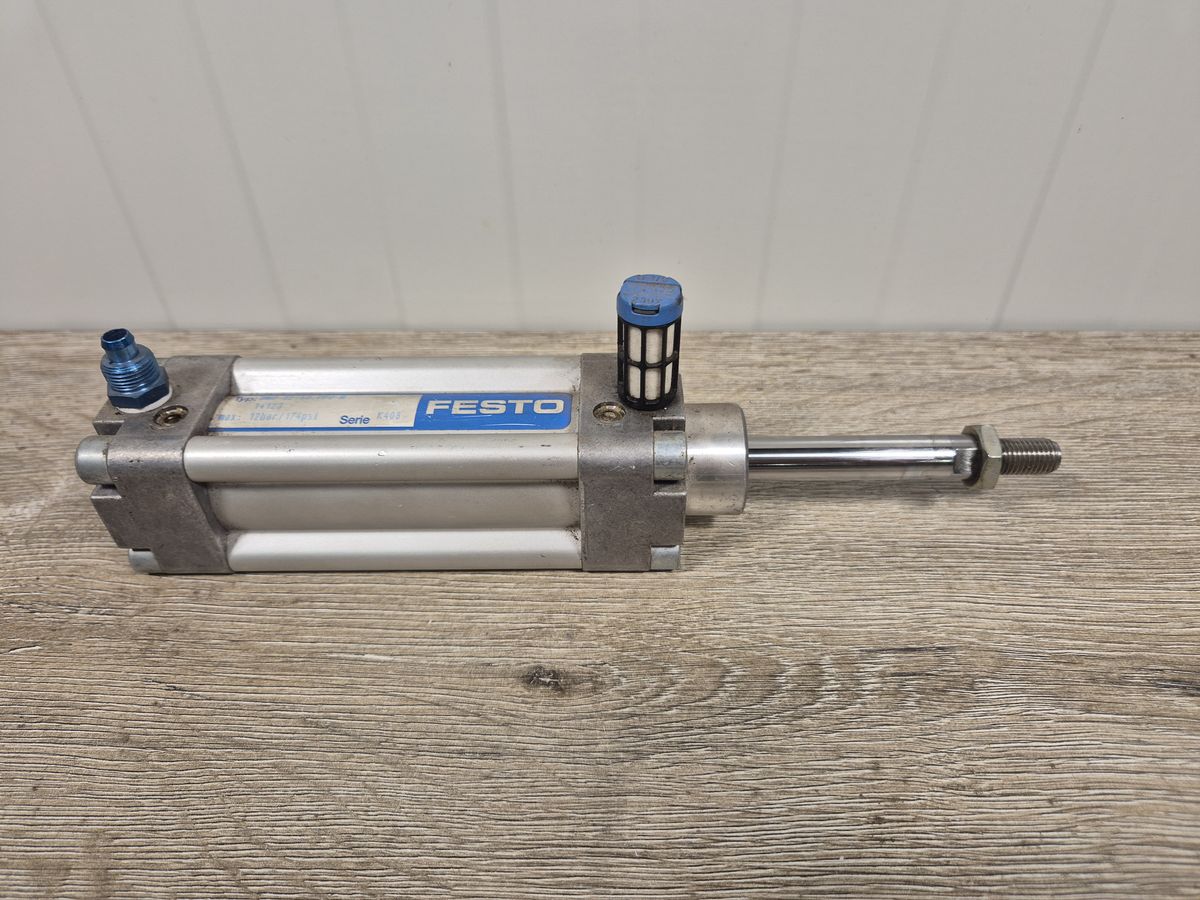

The Festo DNU-32-50-PPV-A is a double-acting standard pneumatic cylinder with a 32 mm bore and a 50 mm stroke. It features adjustable pneumatic cushioning at both ends (PPV) and contactless position sensing capability via integrated magnets (A). It is rated for industrial automation applications with operating pressures up to 12 bar (174 psi).

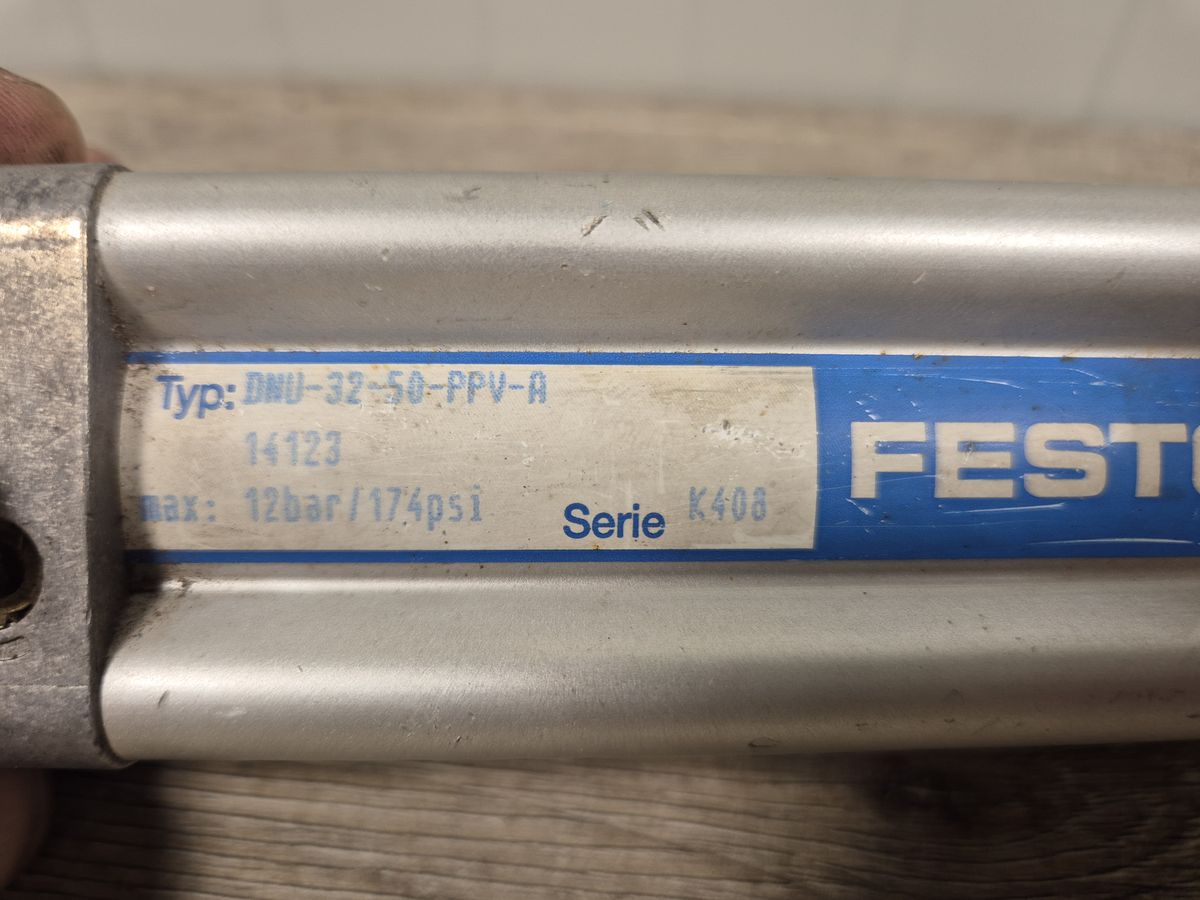

Specifications – DNU-32-50-PPV-A

Parameter	Specification
Part number	14123
Piston diameter	32 mm
Stroke length	50 mm
Max. pressure	12 bar / 174 psi
Series code	K408
