Kaitselülitid

Doepke DLS 5

SKU: 28011

Laos

Vali seisund

Used

Ilma KM-ta: €10,00 (2 saadaval)

K.a. KM: €12,10

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Kvaliteedi garantii teave

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud 6 kuud

Kasutatud 3 kuud

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Kirjeldus

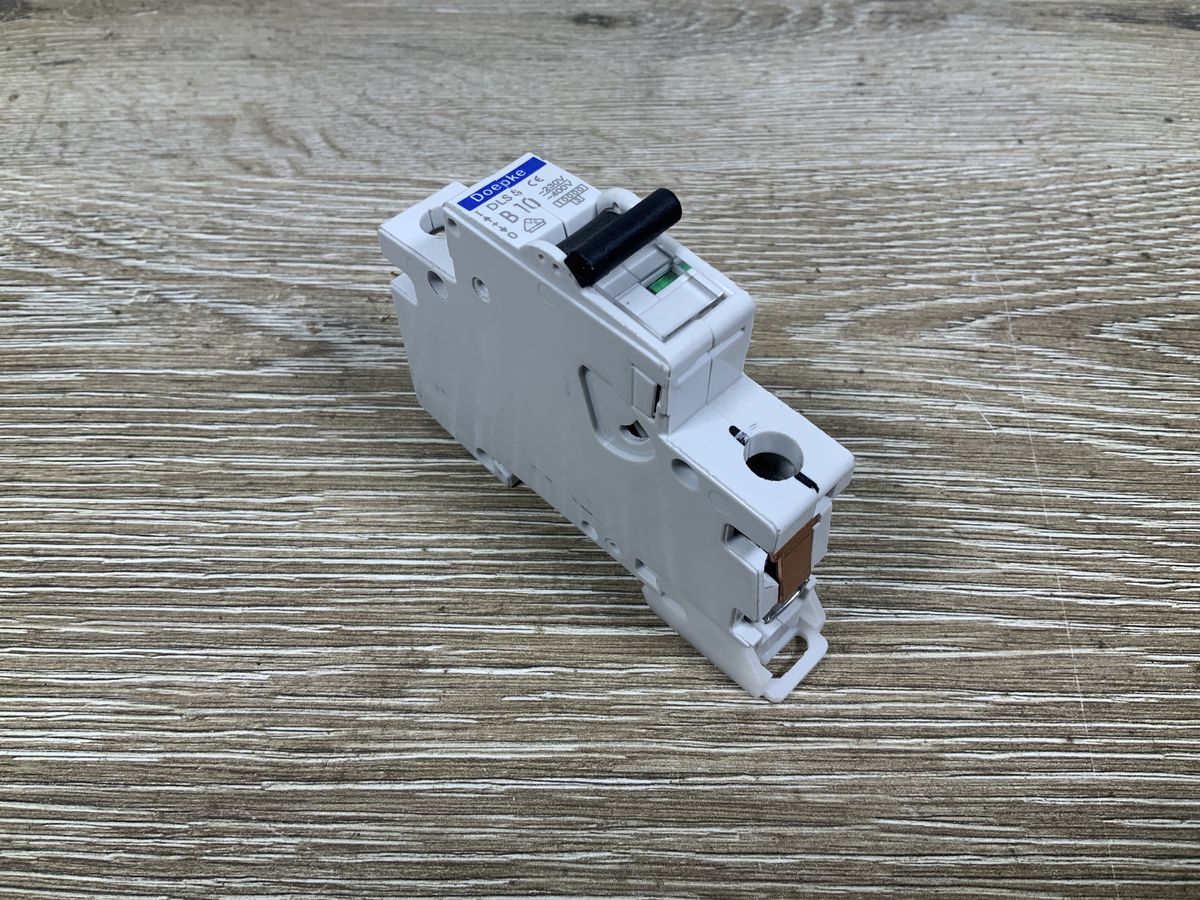

The Doepke DLS 5 is a single-pole miniature circuit breaker (MCB) designed for standard DIN-rail installation in electrical distribution systems. It provides overcurrent and short-circuit protection with a B-curve tripping characteristic, 10 A rated current, and 10 kA breaking capacity.

Specifications – DLS 5

Parameter	Specification
Number of Poles	1
Tripping Characteristic	B
Rated Current	10 A
Rated Voltage	230 V / 400 V AC
Rated Breaking Capacity	10000 A (10 kA)
Energy Limiting Class	3
