Tescom 44E2260-241
SKU: 8017
Laos
Kvaliteedi garantii teave
Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

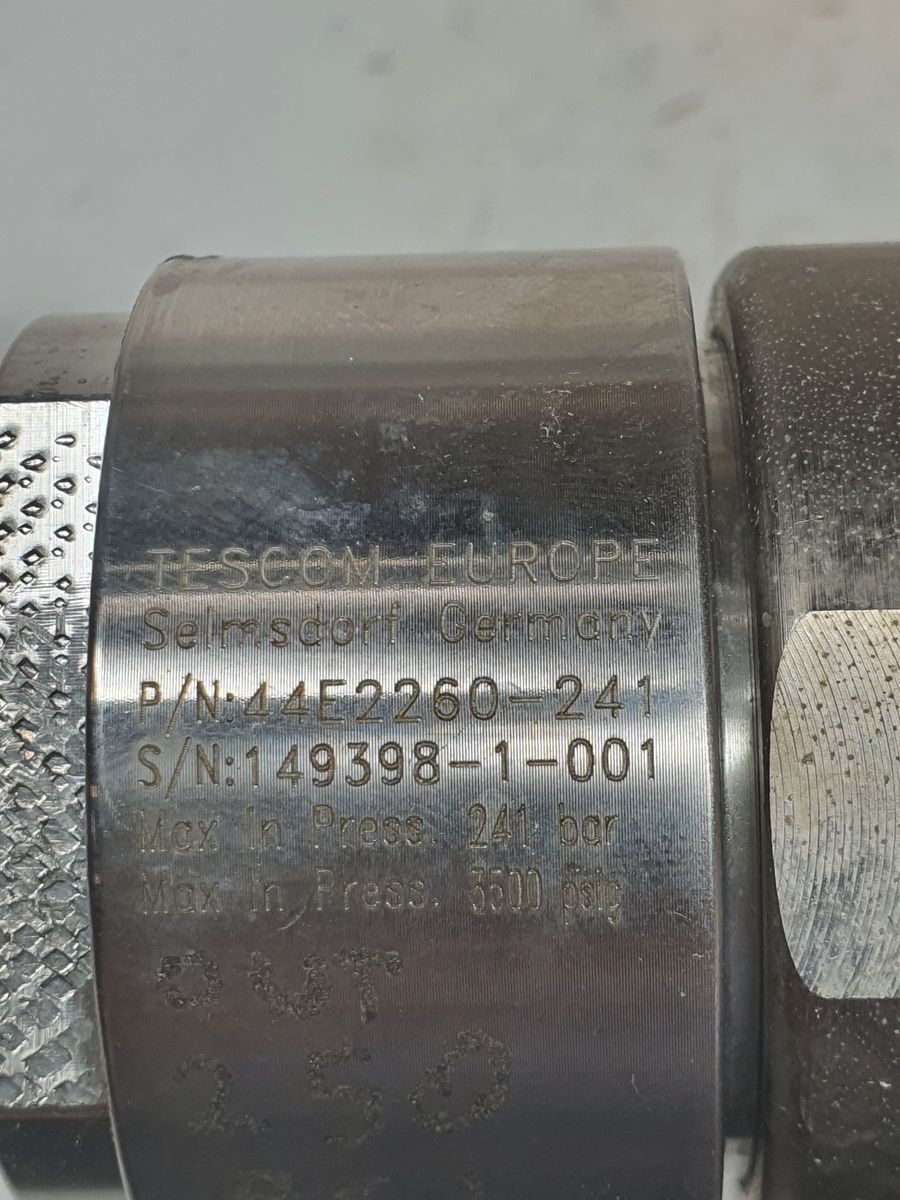

TESCOM 44E2260‑241
Specification Table
| Parameter | Details |
|---|---|
| Series | TESCOM 44‑2200 Series Single‑Stage Regulator |
| Model / Part Number | 44E2260‑241 |
| Function | Pressure Reducing / Backpressure Regulator (Single Stage) |

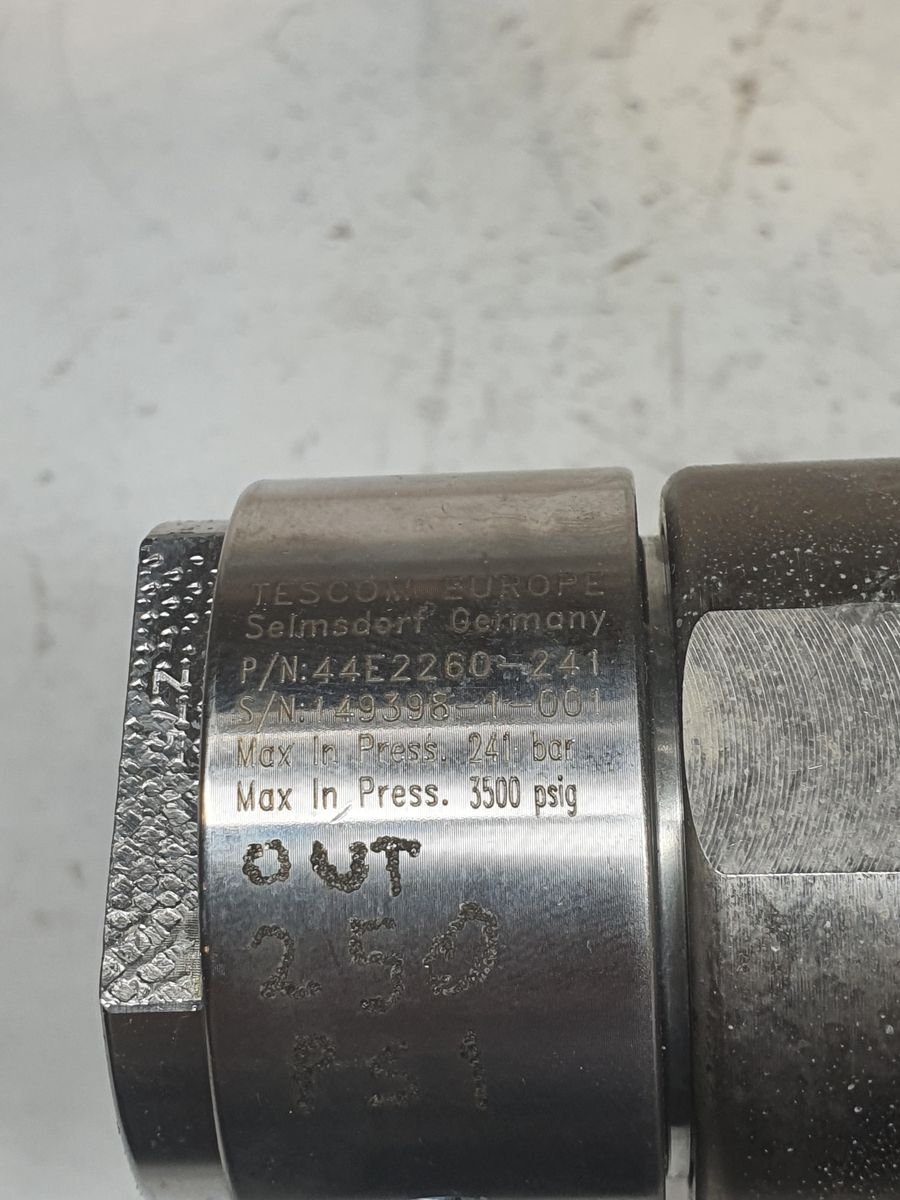

| Maximum Inlet Pressure | 3500 psig / 241 bar |

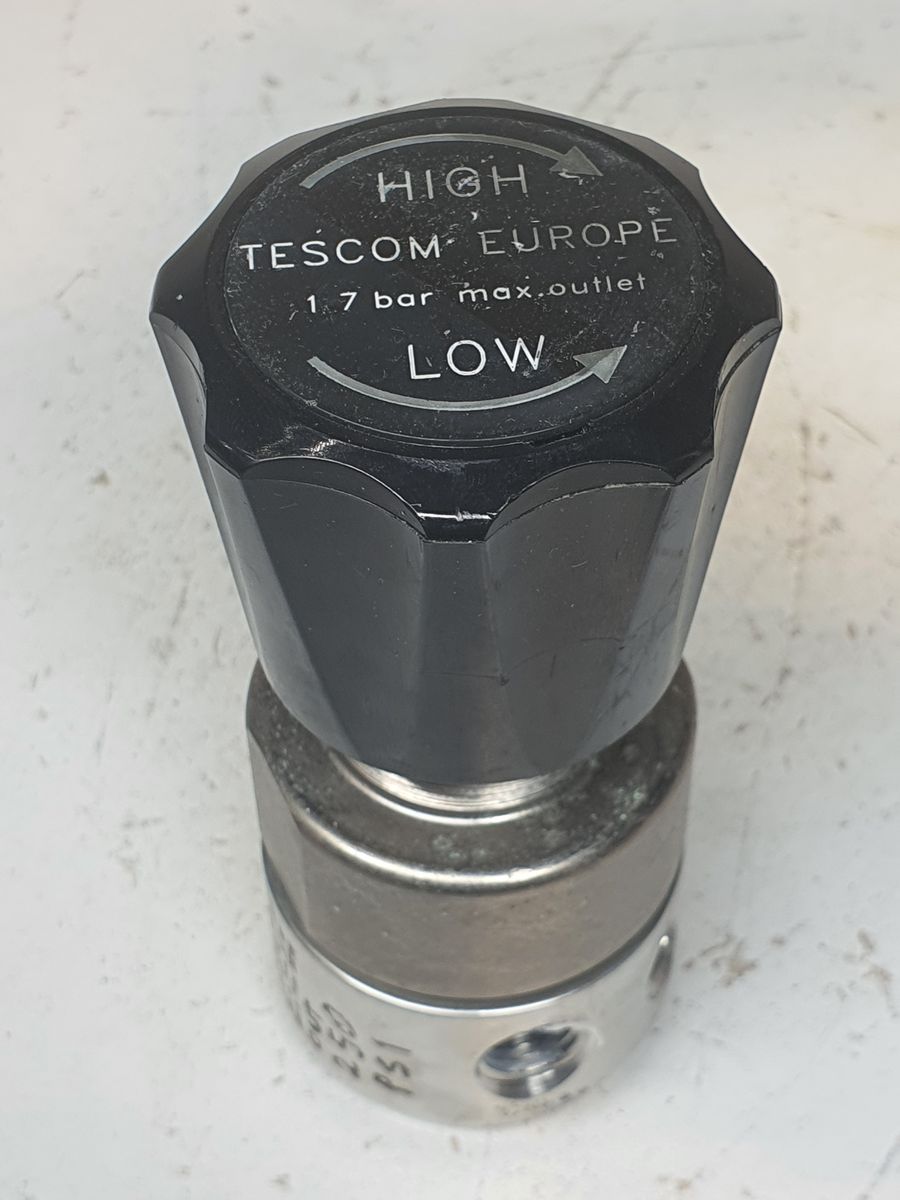

| Outlet / Controlled Pressure Range | 0–25 psig / 0-1.7 bar |
| Design Proof Pressure | 150% of rated pressure |
| Leakage | Internal bubble-tight; external ≤ 2×10⁻⁸ atm cc/sec He |
| Operating Temperature | –40°F to 165°F / –40°C to 74°C |
| Flow Capacity (Cv) | 0.06 |
| Body Material | 316L Stainless Steel |
| Seat Material | PTFE |
| Diaphragm Material | 316 Stainless Steel |
| Bonnet Material | 300 Series Stainless Steel |
| Remaining Internal Parts | 316 Stainless Steel |

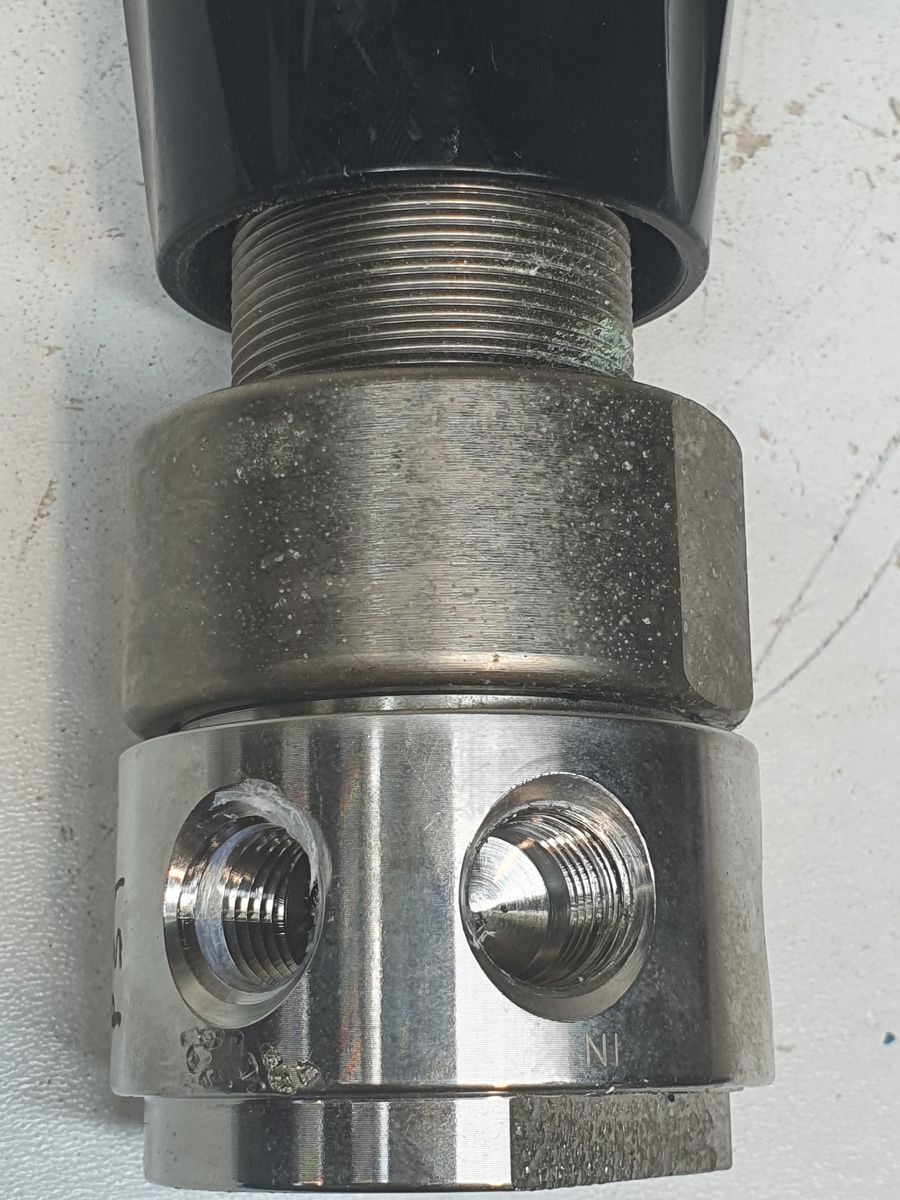

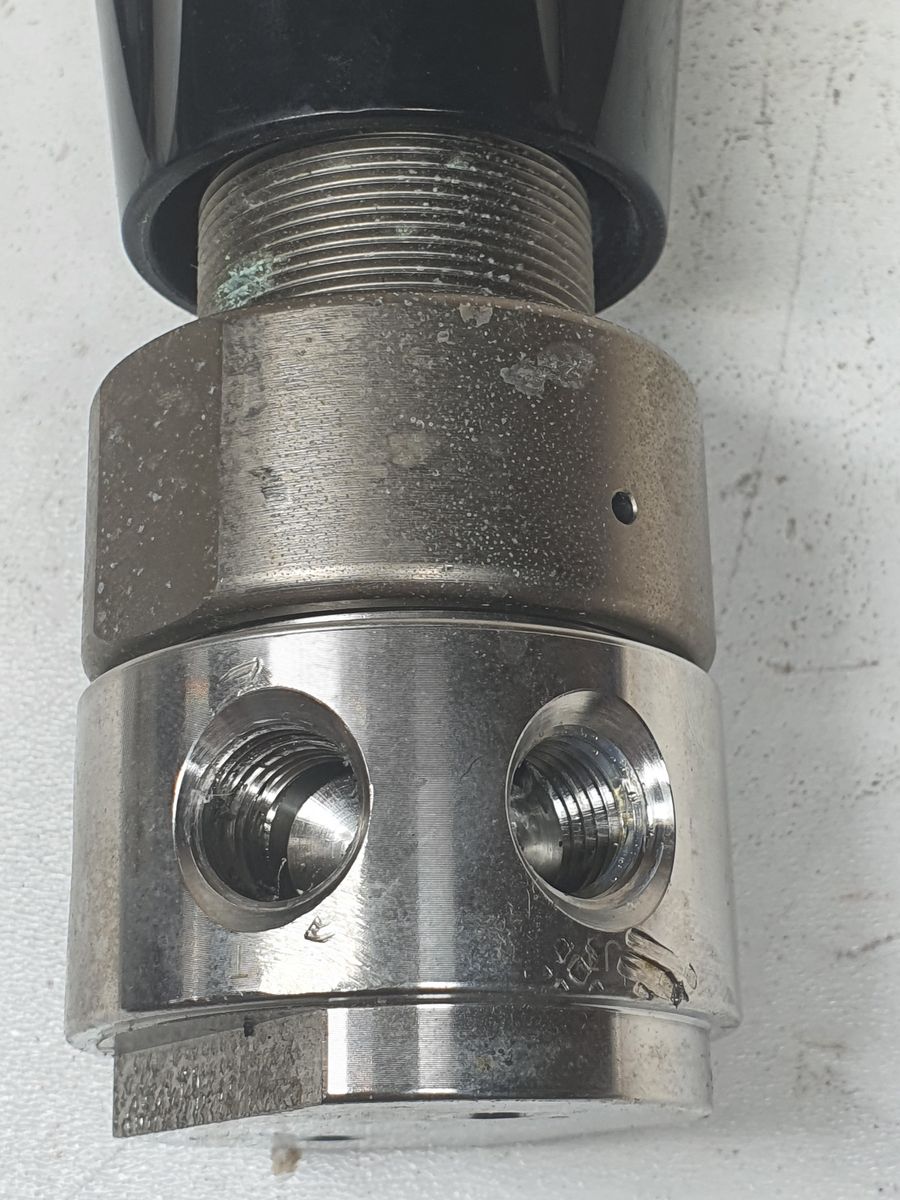

| Port Size & Type | 1/4″ NPTF |
| Maximum Operating Torque | 30 in‑lb / 3.4 N·m |
| Weight (Approx.) | ~2 lbs / 0.9 kg |
| Typical Applications | Laboratory gas systems, sampling, analytical instruments, specialty/industrial gas control |
| Features | Diffusion‑resistant metal diaphragm seal, compact design, accurate regulation, gauge port options |
×
![]()
