Kaitselülitid

Telemecanique GV2ME10

SKU: 28008

Laos

Vali seisund

Used

Ilma KM-ta: €15,00 (2 saadaval)

K.a. KM: €18,15

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Kvaliteedi garantii teave

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud 6 kuud

Kasutatud 3 kuud

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Kirjeldus

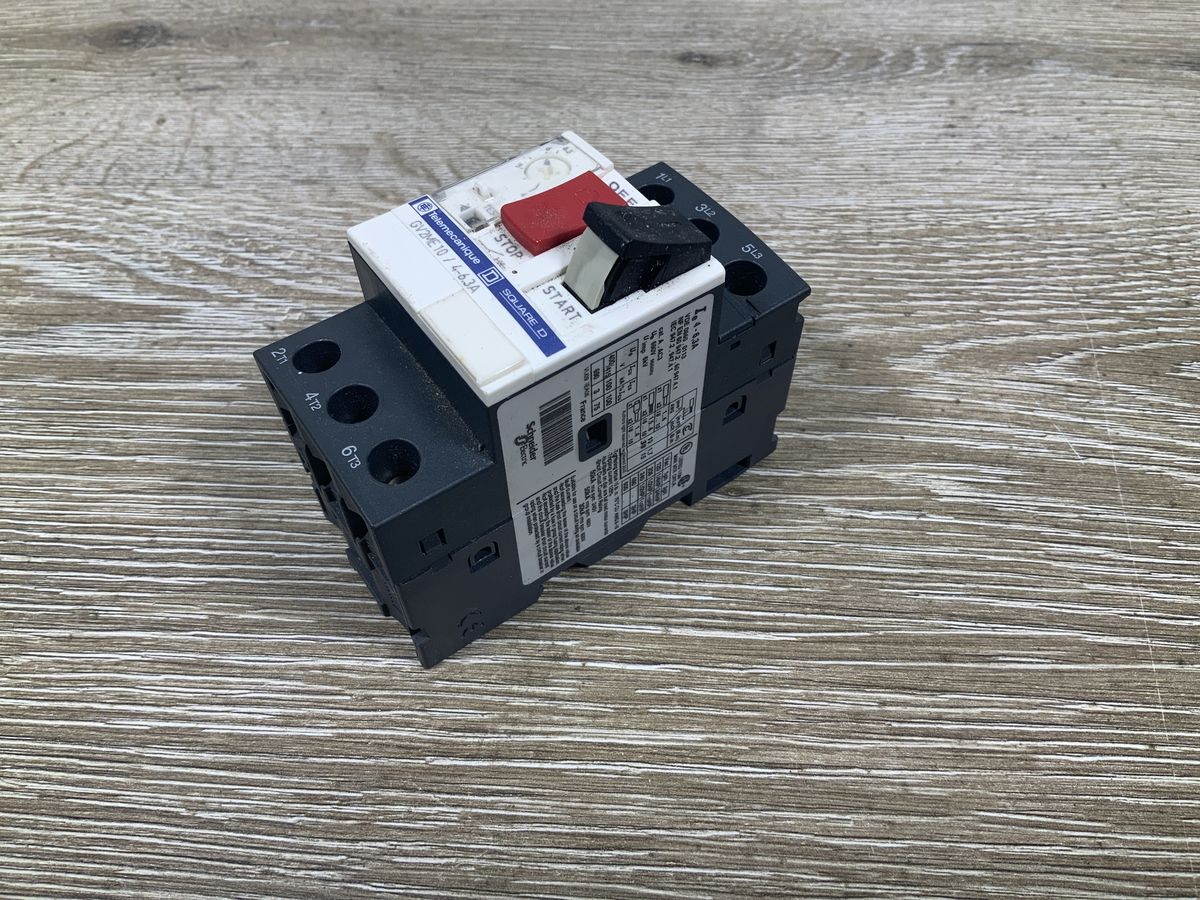

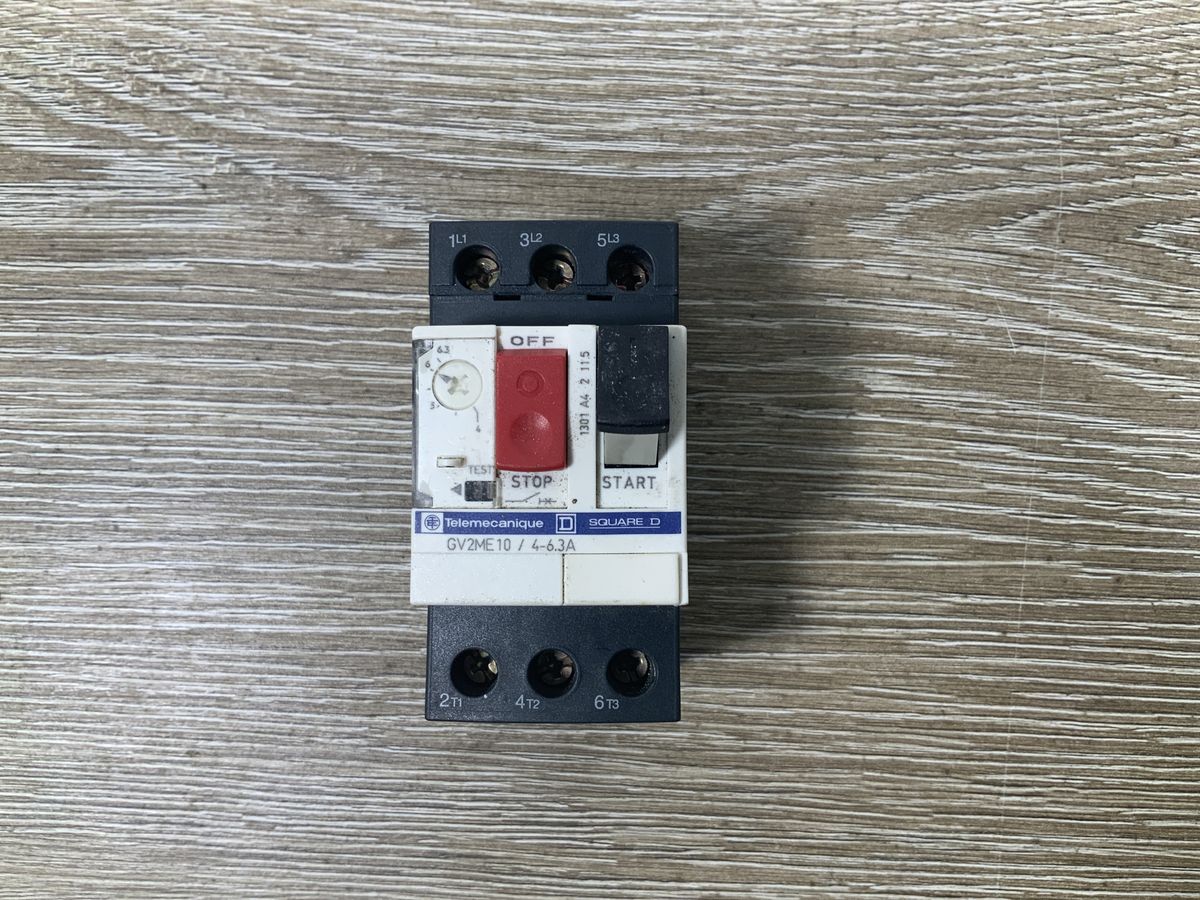

The Telemecanique / Schneider Electric GV2ME10 is a 3-pole thermal-magnetic motor circuit breaker designed for manual motor control and overcurrent protection. It features an adjustable thermal setting range from 4 to 6.3 A with pushbutton start/stop operation. Designed for 35 mm DIN rail mounting in industrial power distribution and control systems.

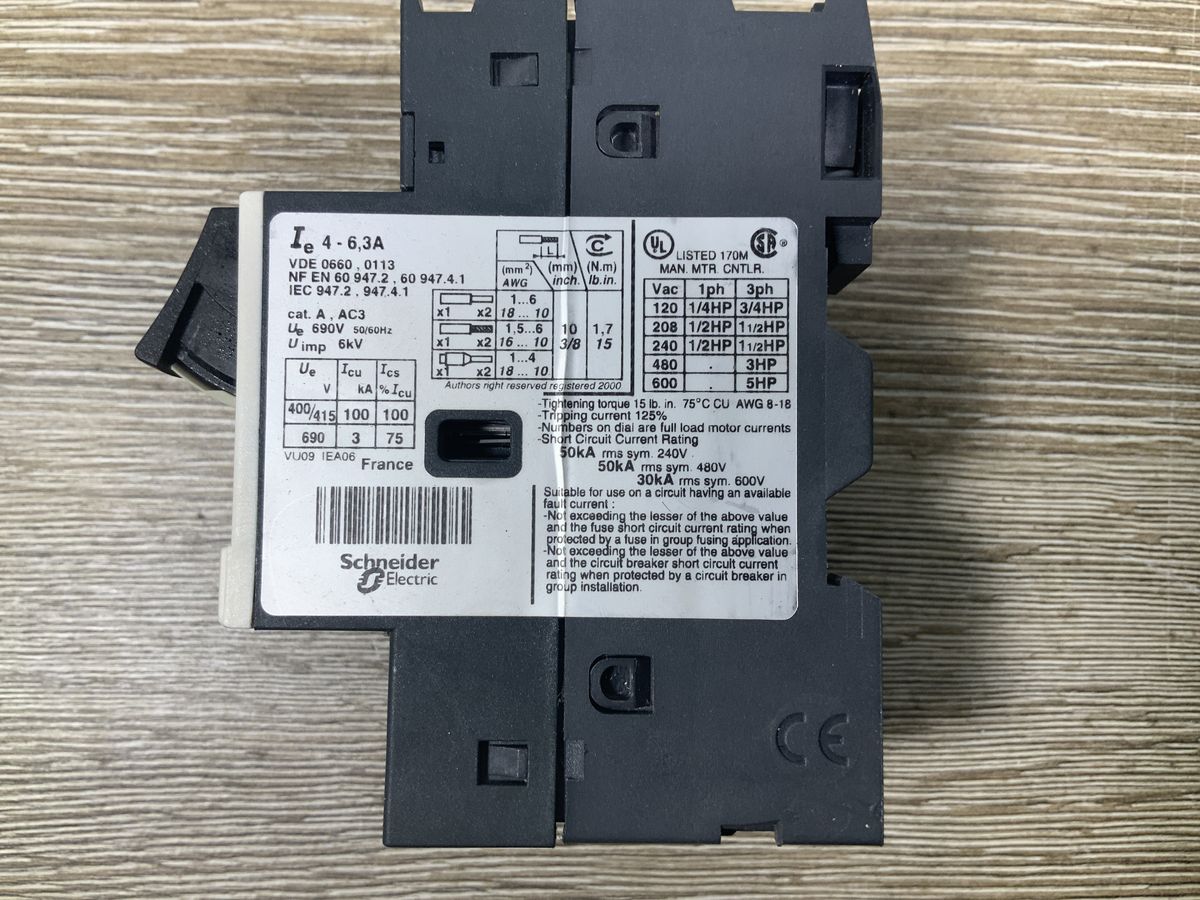

Specifications – GV2ME10

Parameter	Specification
Current Adjustment Range	4 - 6.3 A
Rated Operational Voltage (Ue)	690 V AC 50/60Hz
Rated Impulse Withstand Voltage (Uimp)	6 kV
Number of Poles	3
Short Circuit Capacity (Icu)	100 kA @ 400/415V
Mounting Type	DIN Rail
