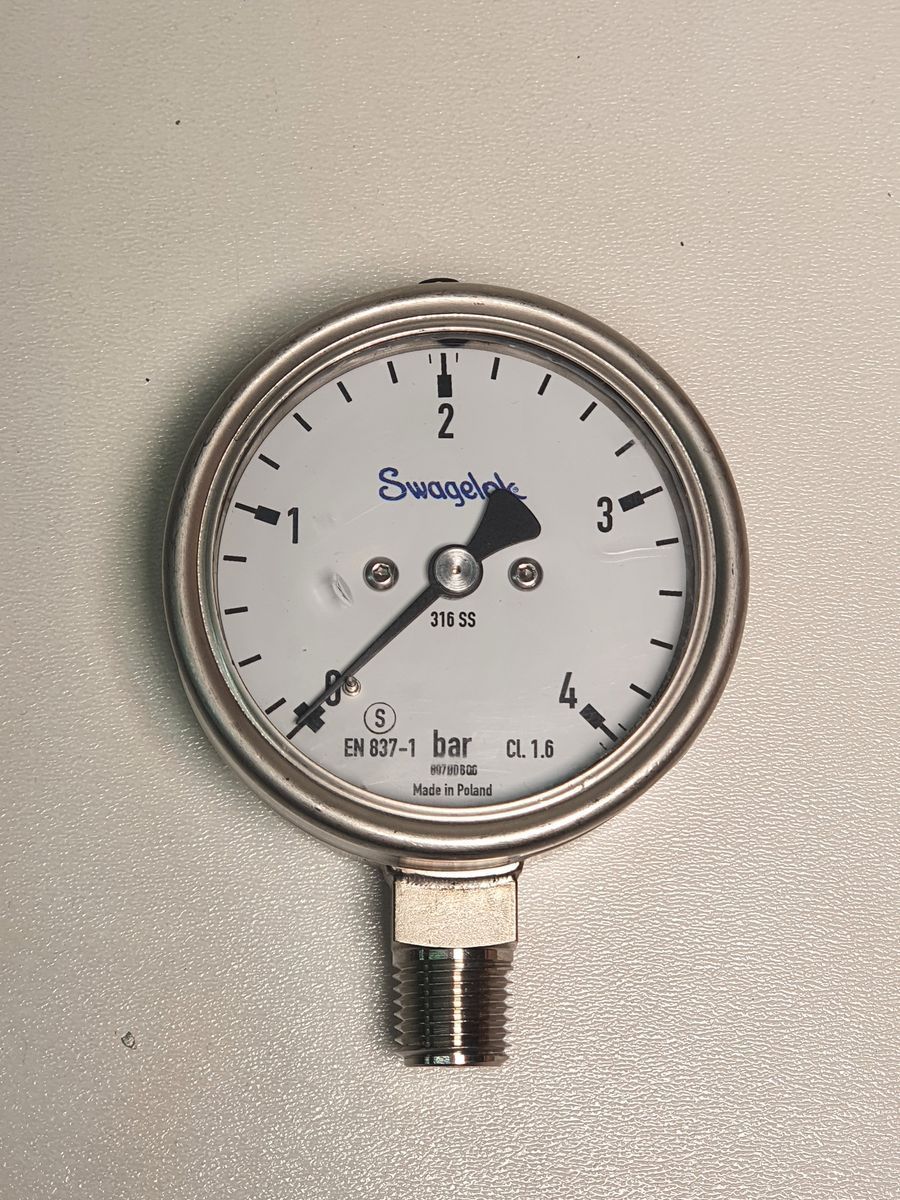

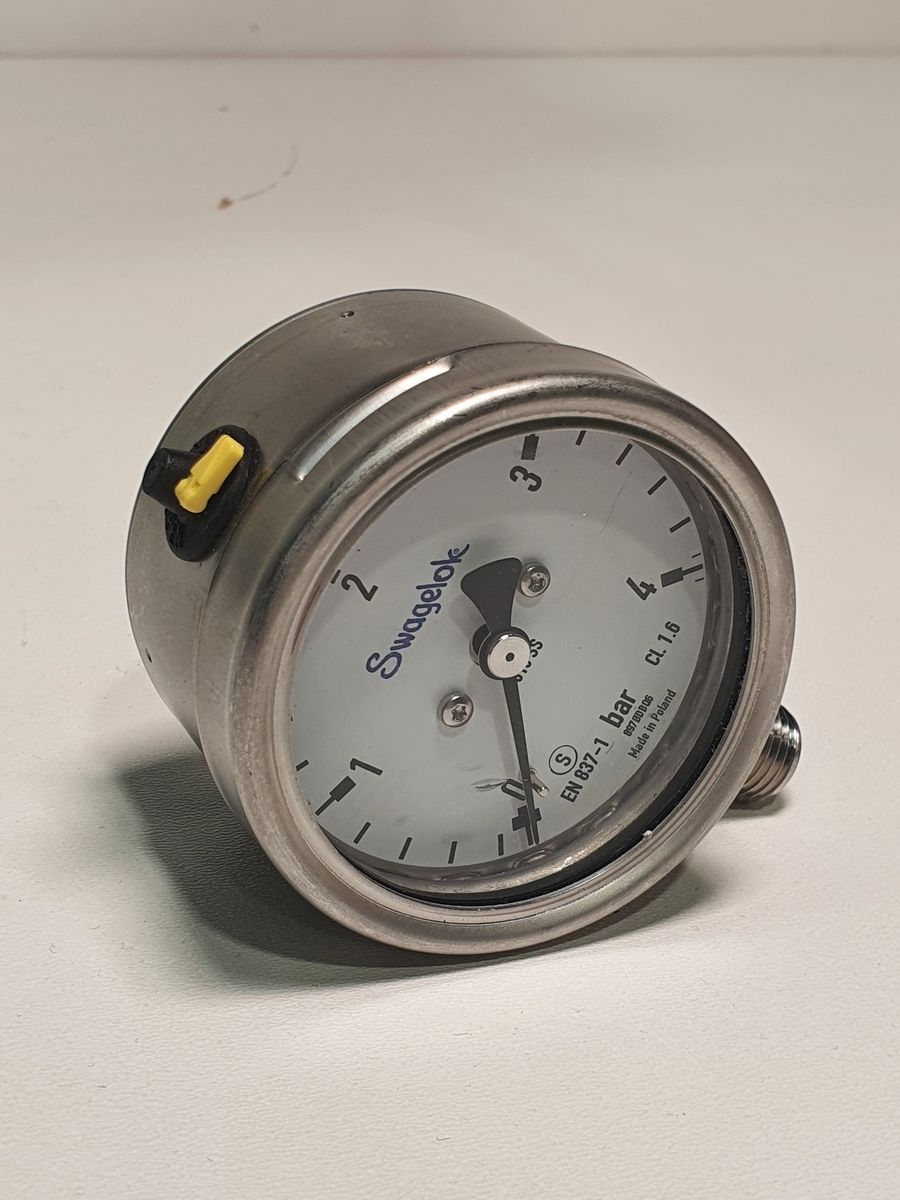

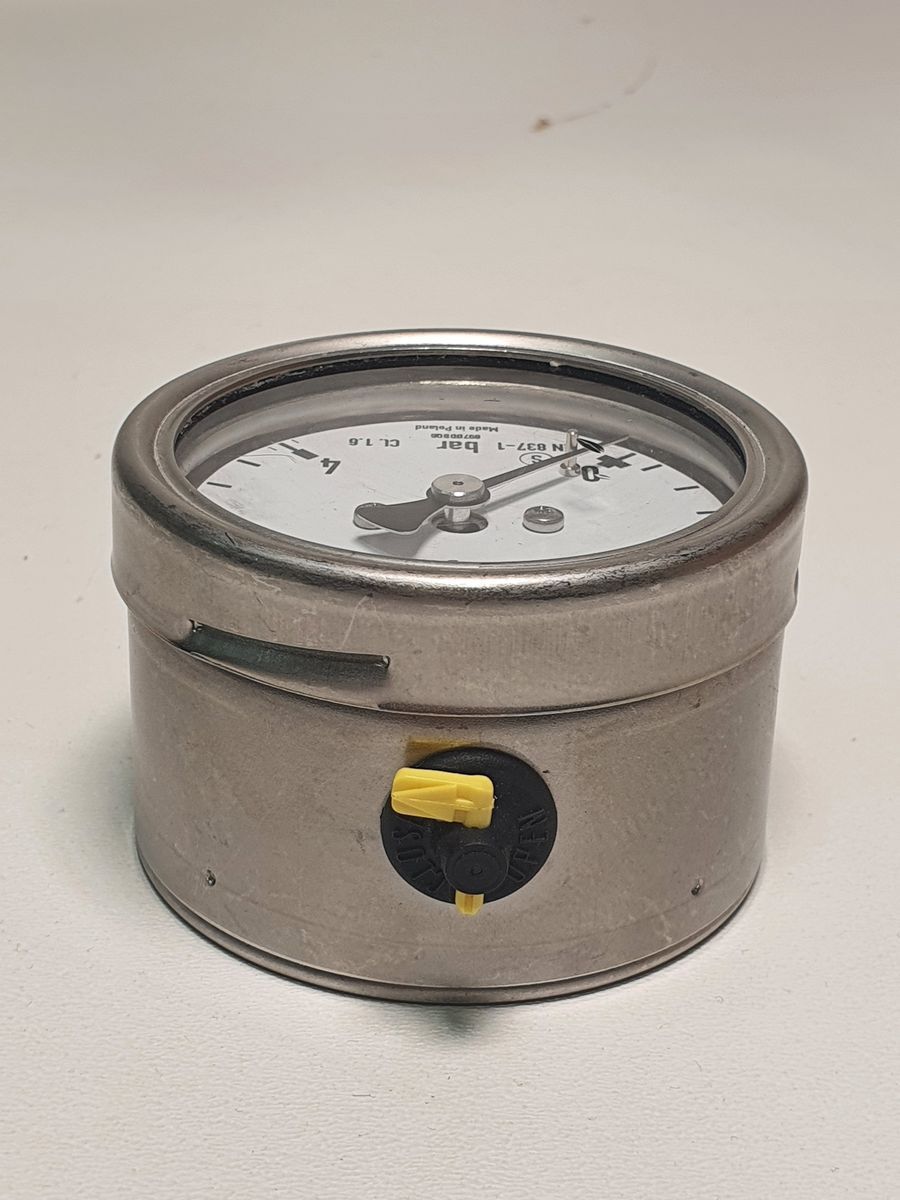

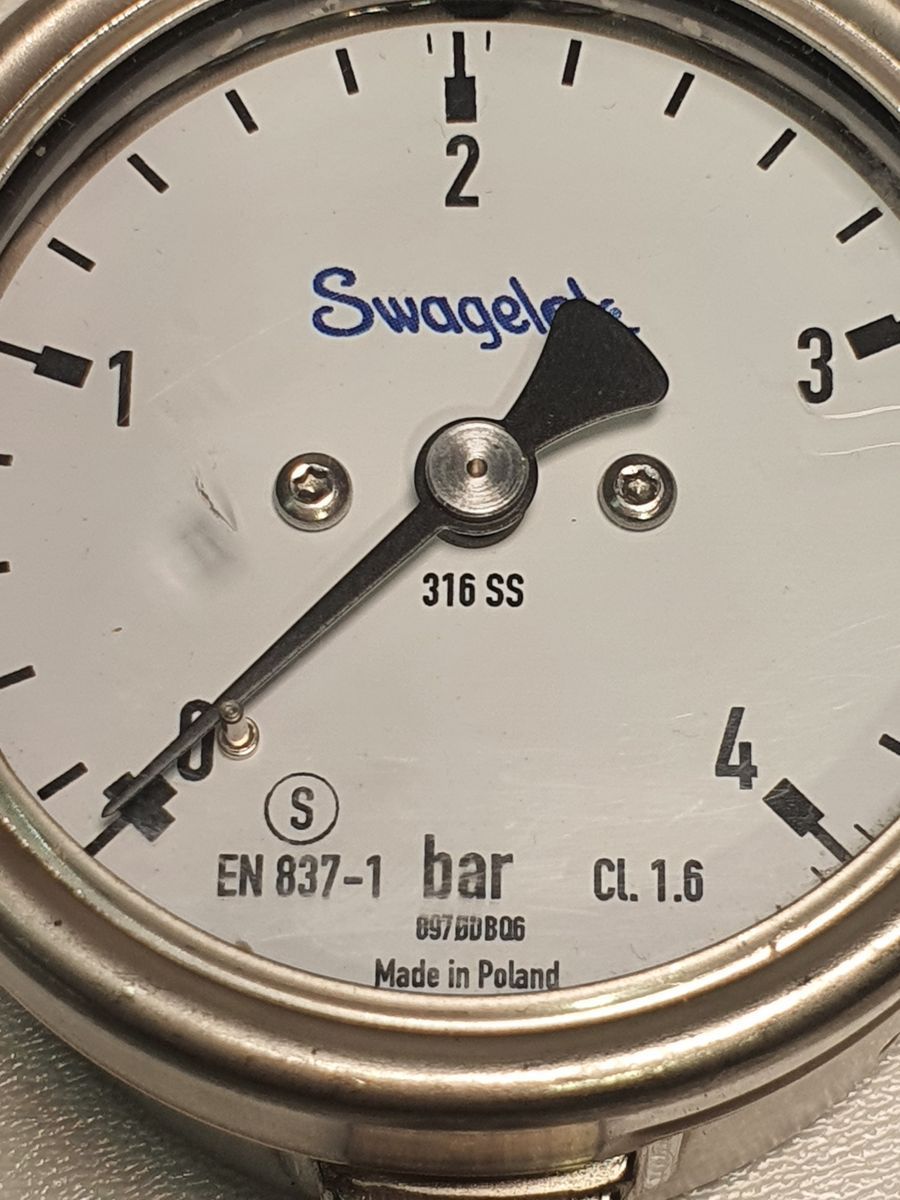

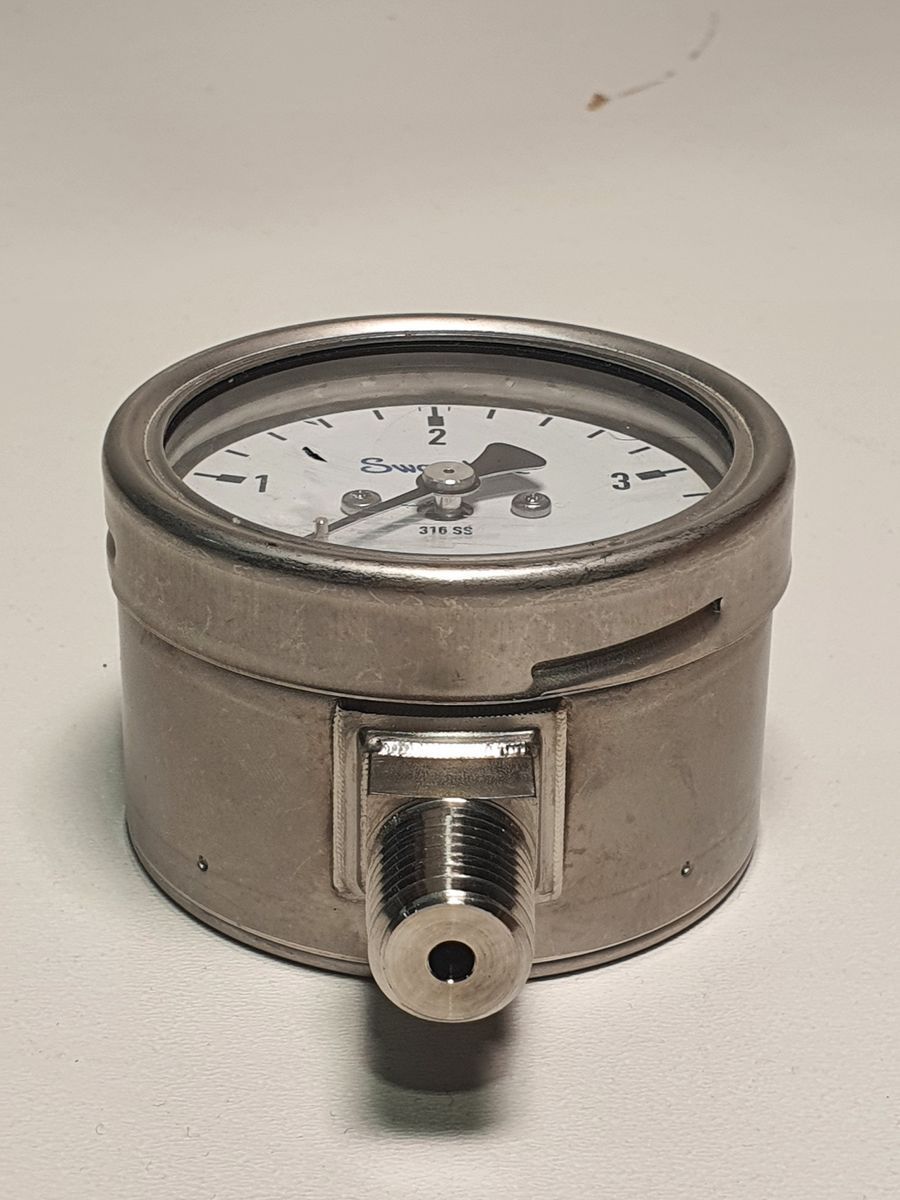

Swagelok PGI Industrial Pressure Gauge 0-4 bar 1/4 NPT Male 63mm

SKU: 6005

Laos

Kasutatud
Saadud töökeskkonnast

Hind päringu alusel

Kasutatud
Saadud töökeskkonnast

Ilma KM-ta: €45,00 (1 saadaval)

K.a. KM: €54,45

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud 3 kuud

Kasutatud DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

The Swagelok PGI-63C-PG100-LA0X

Category	Parameter
Standard Compliance	EN 837-1 (EU mechanical pressure gauge standard)
Dial Size	63 mm (2.5 in)
Pressure Range	0–4 bar (58 psi)
Case Material	Stainless steel
Wetted Materials	316 stainless steel
Window	Polycarbonate or tempered glass (variant-dependent)
Internals	Bourdon tube mechanism for stable, repeatable measurement
Accuracy	±1.6% of full scale (PGI 63 mm standard)
Temperature Range	Typically −20 °C to +60 °C (varies by fill/configuration)
Vibration Resistance	Optional liquid-filled case for enhanced stability (dry gauge usually LA0X code)
Process Connection	1/4" NPT (common on 63 mm PGI gauges)
Mounting	Lower mount (code “C” = center back or bottom connection depending on variant)
