Regulaatorid

Swagelok KBP1D0G4A5A20000

SKU: 12001

Laos

Refurbished

Ilma KM-ta: €200,00 (1 saadaval)

K.a. KM: €242,00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud DOA

Kasutatud DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

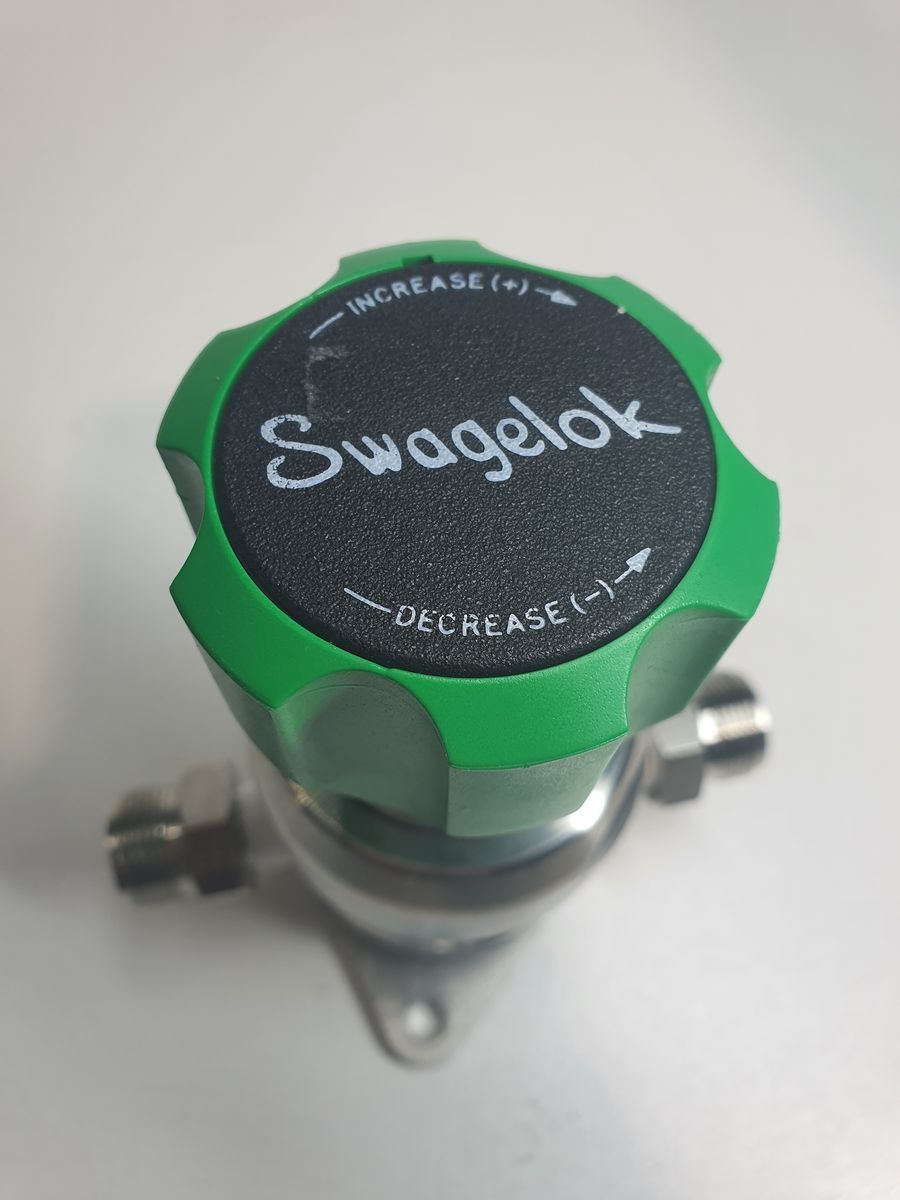

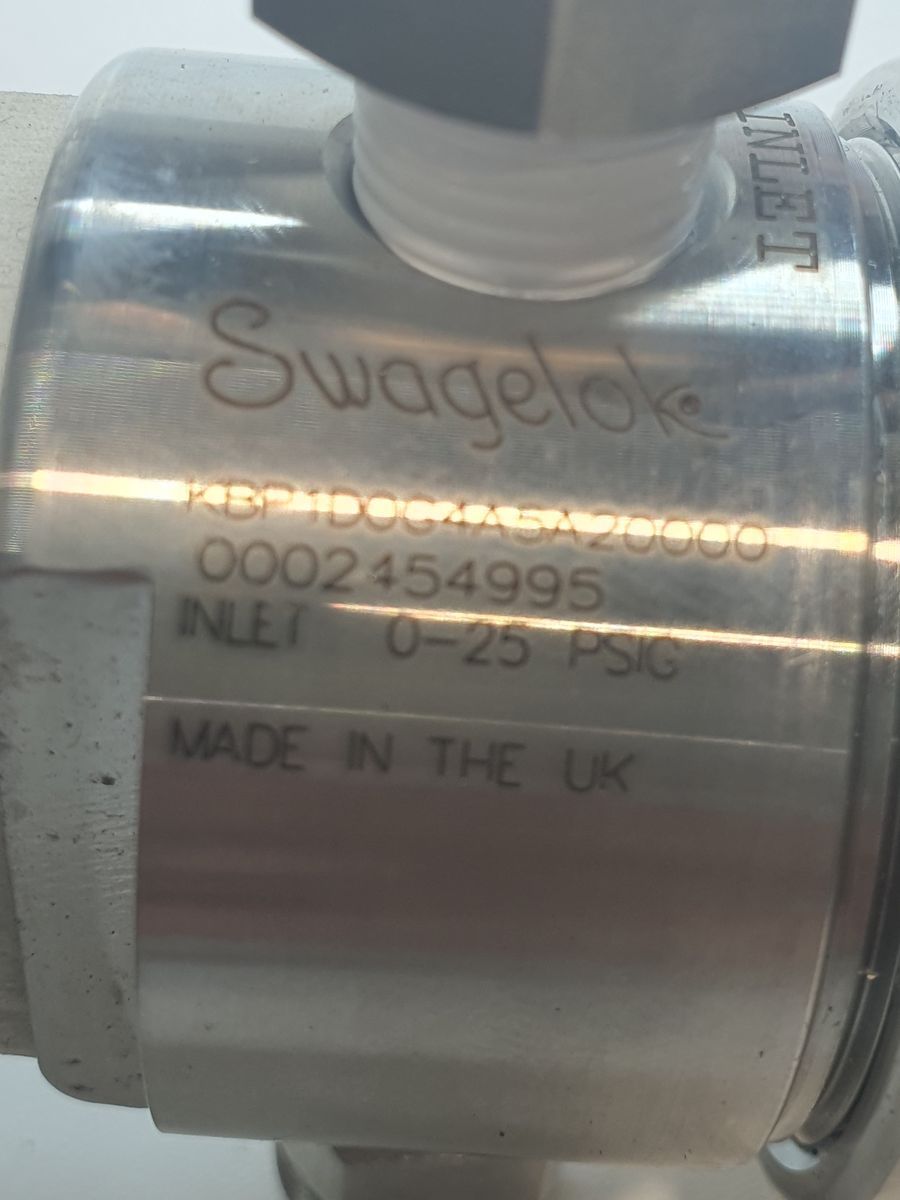

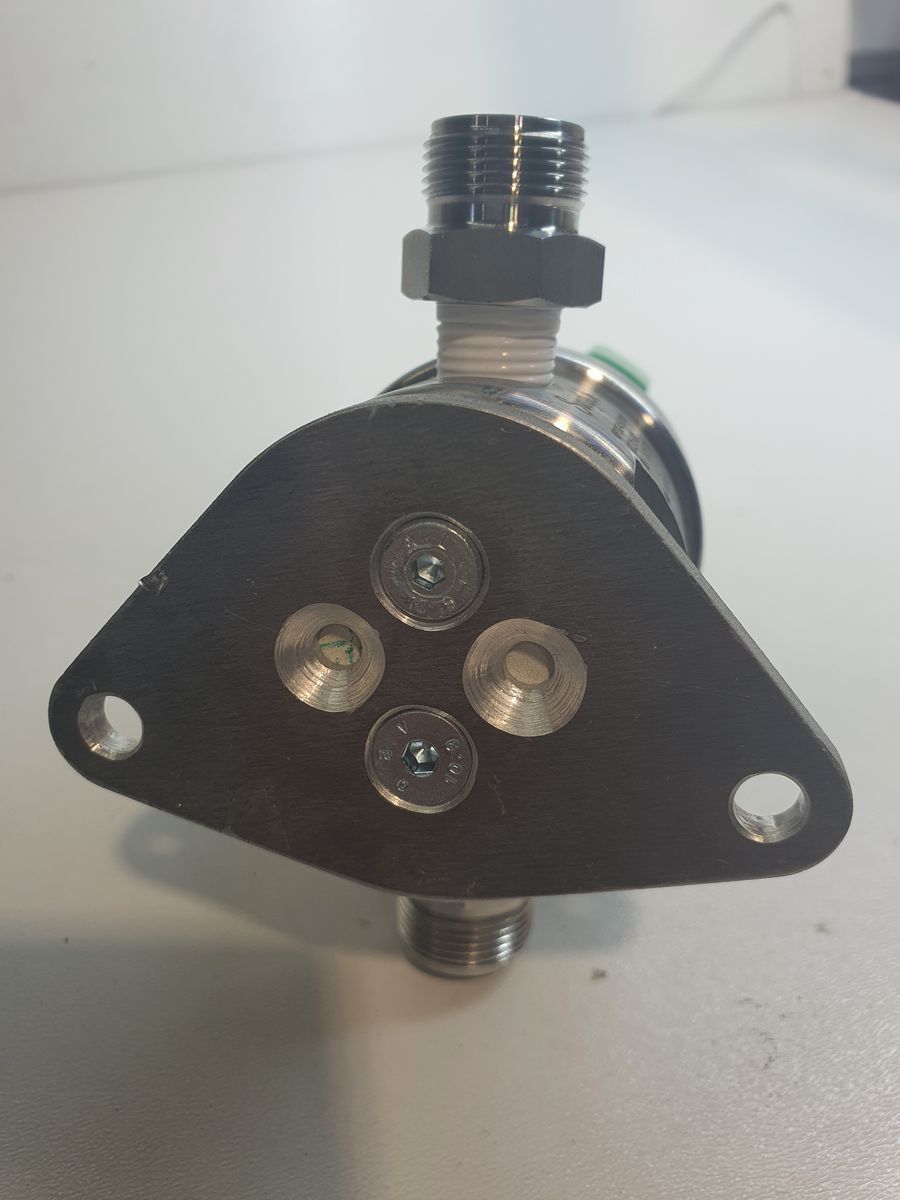

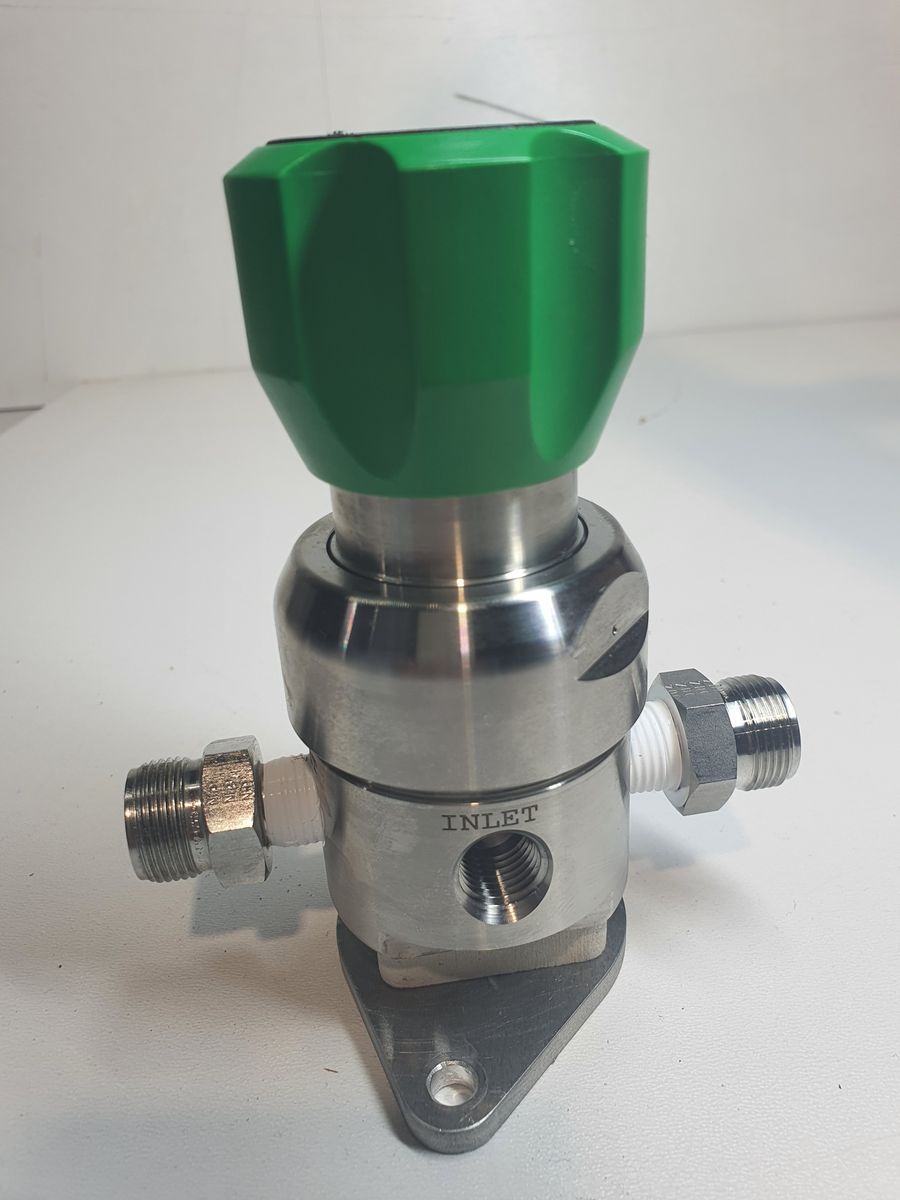

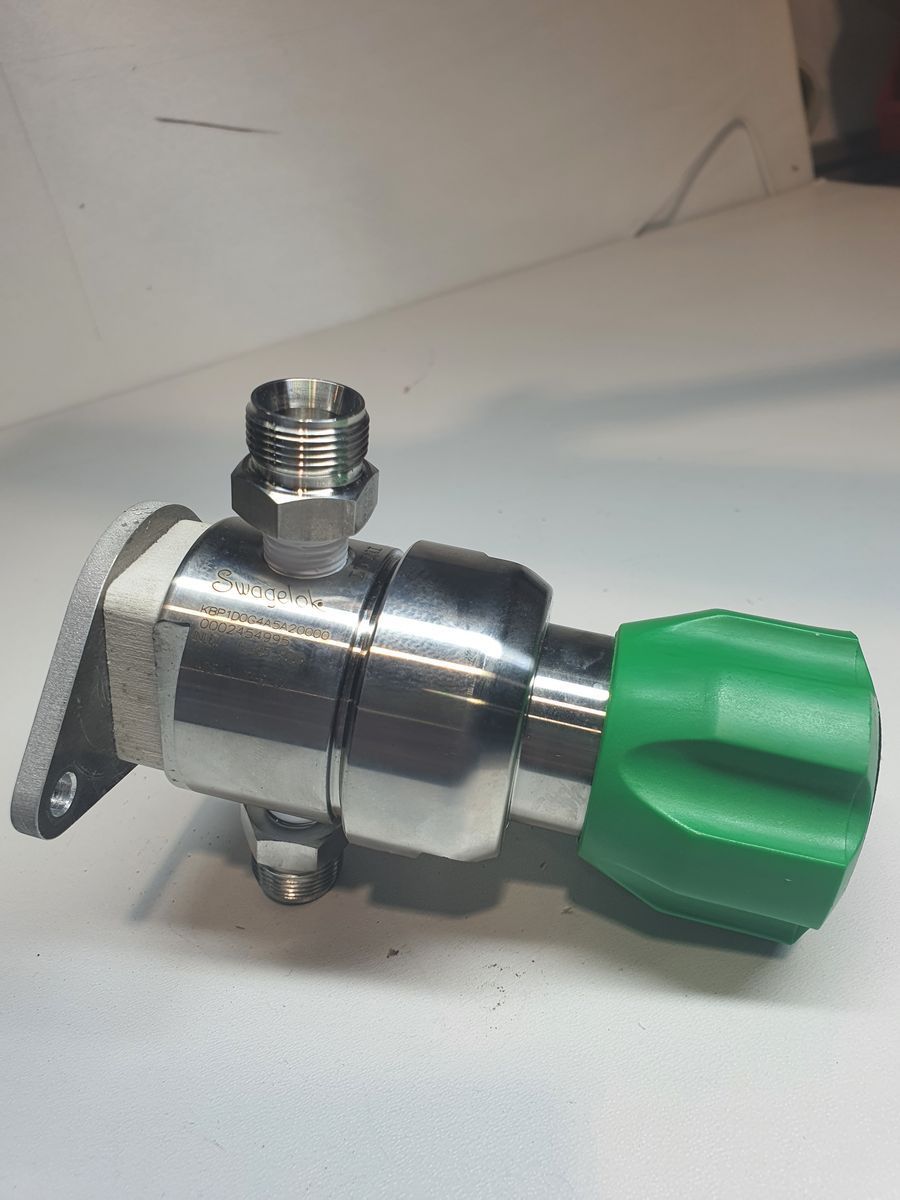

Swagelok KBP1D0G4A5A20000

Category	Parameter
Brand	Swagelok
Series	KBP Spring-Loaded Back-Pressure Regulators
Model	KBP1D0G4A5A20000
Regulator Type	Back-pressure regulator
Pressure Control Range (Inlet)	0–25 psig (0–1.7 bar)
Seat and Seal Material	Fluorocarbon (FKM), PCTFE
Sensing Mechanism	Alloy X-750 diaphragm
Vent	No vent
Handle Type	Knob
Mounting	Panel or system mounting
Ports	1/4″ Female NPT
Body Material	316 Stainless Steel
Flow Coefficient	~0.20 Cv (typical for KBP series)
Maximum Temperature	~176 °F (80 °C, typical for KBP series)
Cleaning	Standard Cleaning and Packaging (SC-10)
