AS-Interface moodulid

Pepperl+Fuchs VAA-4EA-KF2-ZE/E2

SKU: 42001

Laos

Vali seisund

New

Ilma KM-ta: €60,00 (1 saadaval)

K.a. KM: €72,60

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Kvaliteedi garantii teave

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud 6 kuud

Kasutatud 3 kuud

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Kirjeldus

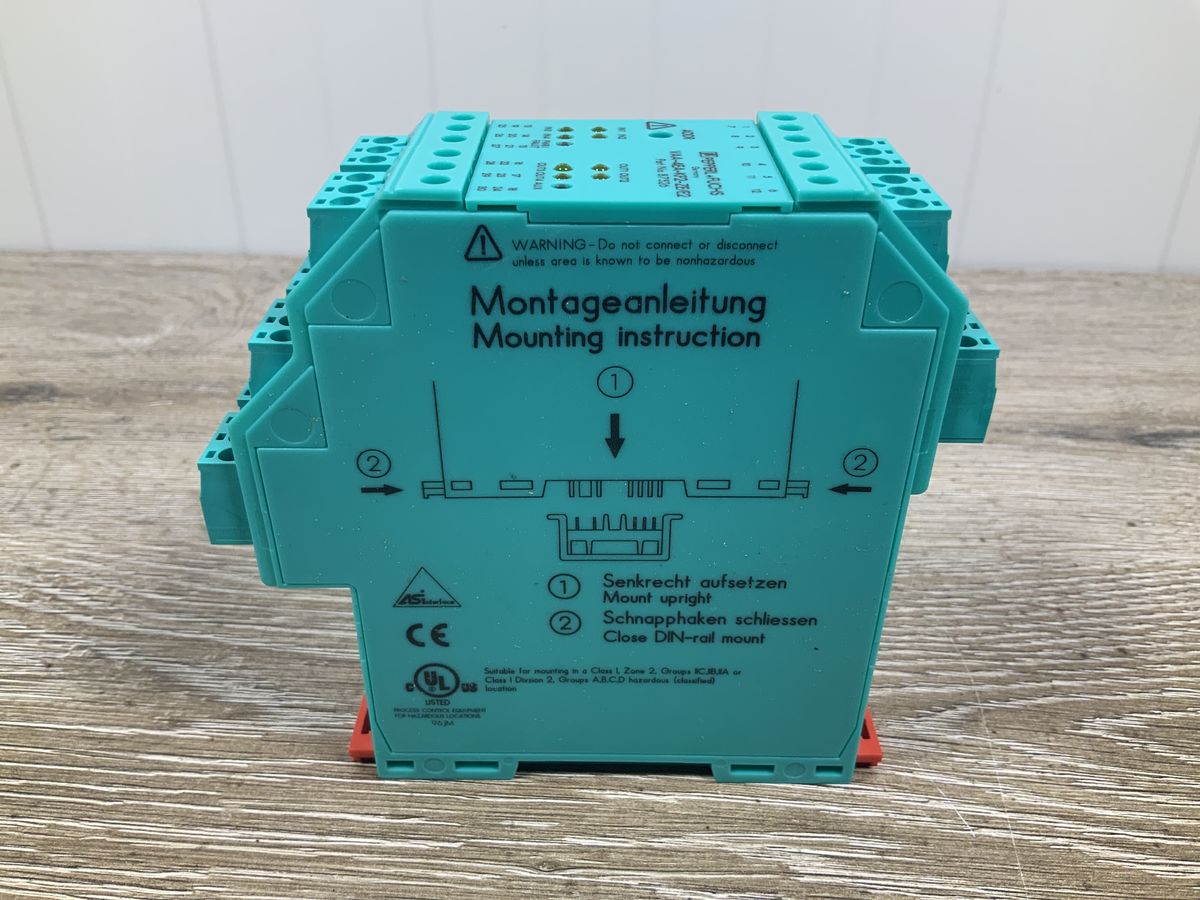

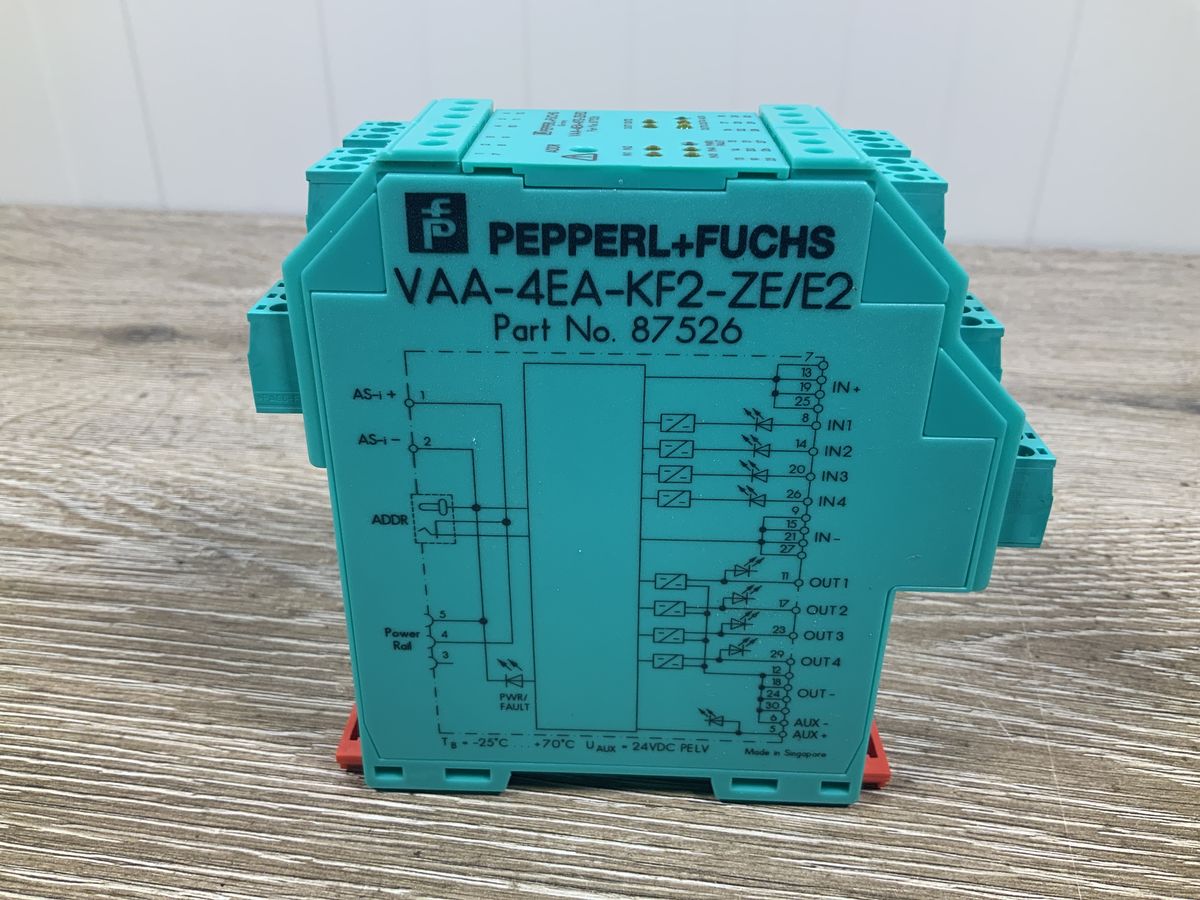

The Pepperl+Fuchs VAA-4EA-KF2-ZE/E2 (Part No. 87526) is an AS-Interface coupling module designed for cabinet and DIN-rail mounting in industrial automation systems. It provides 4 PNP inputs and 4 electronic outputs to connect field sensors and actuators into an AS-i network. The module operates with a 24 V DC auxiliary voltage supply and features coded removable terminal blocks and LED status indicators.

Specifications – VAA-4EA-KF2-ZE/E2

Parameter	Specification
Part Number	87526
Inputs	4 (PNP)
Outputs	4
Auxiliary Voltage (U_AUX)	24 V DC PELV
Ambient Temperature Range	-25°C to +70°C
Mounting Type	DIN rail
