Pöörded

Hengstler RI58-O/360EK.42IH

SKU: 43003

Laos

Vali seisund

Used

Ilma KM-ta: €150,00 (1 saadaval)

K.a. KM: €181,50

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Kvaliteedi garantii teave

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud 6 kuud

Kasutatud 3 kuud

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Kirjeldus

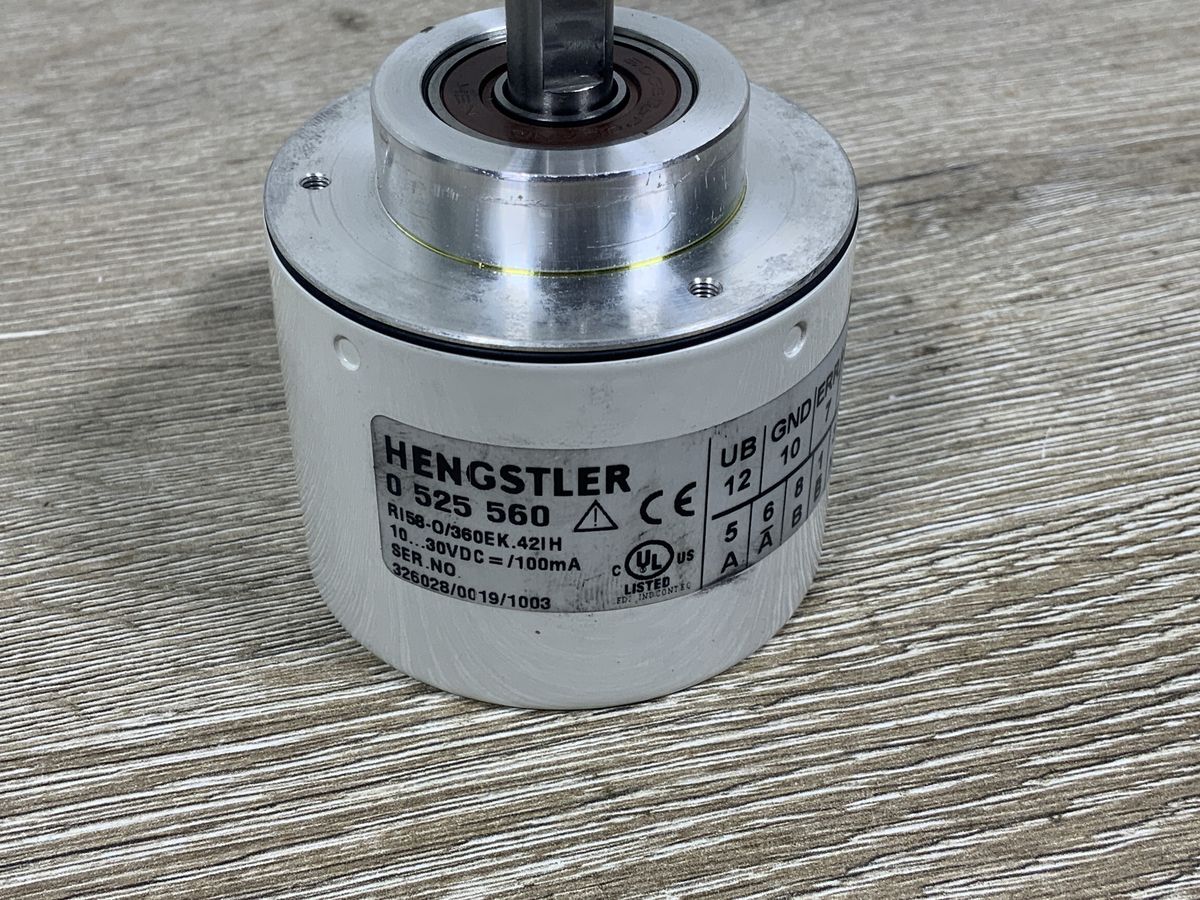

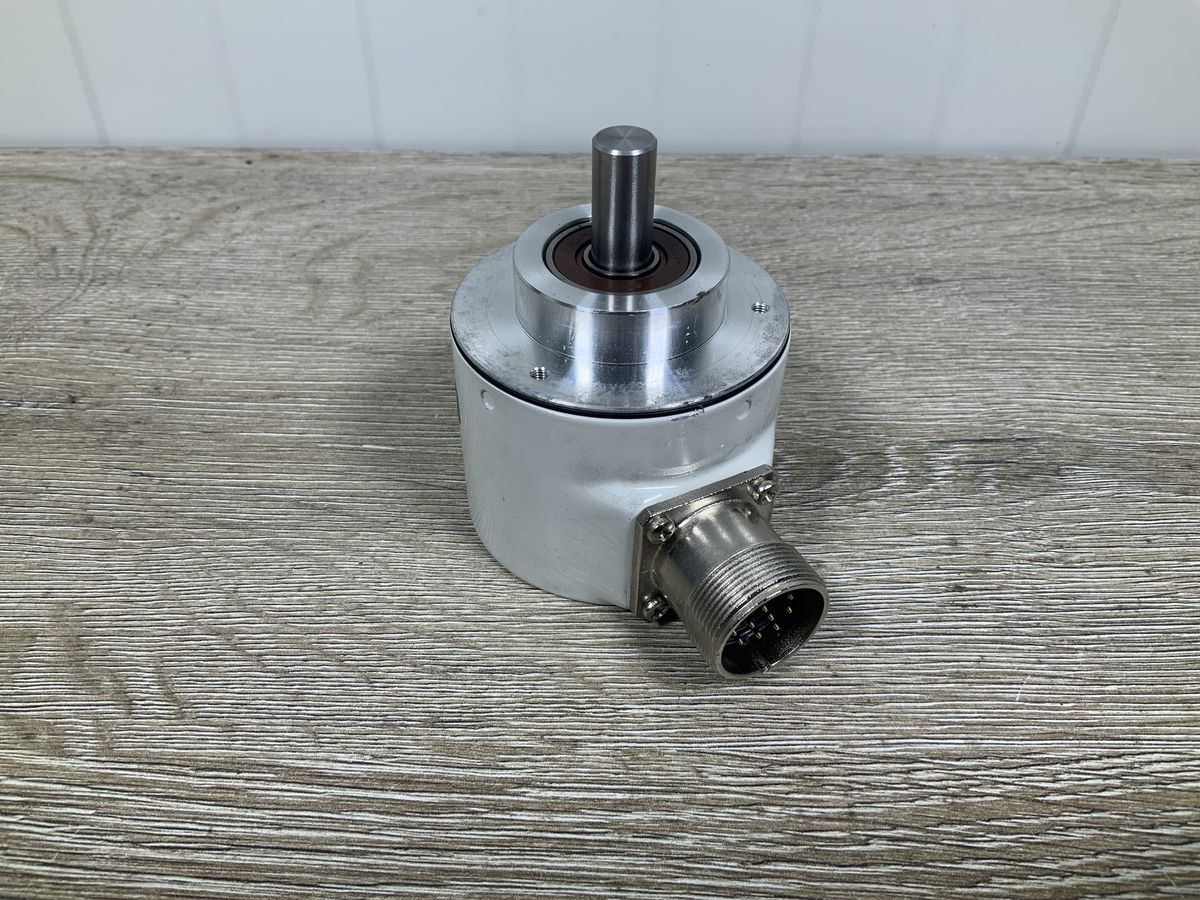

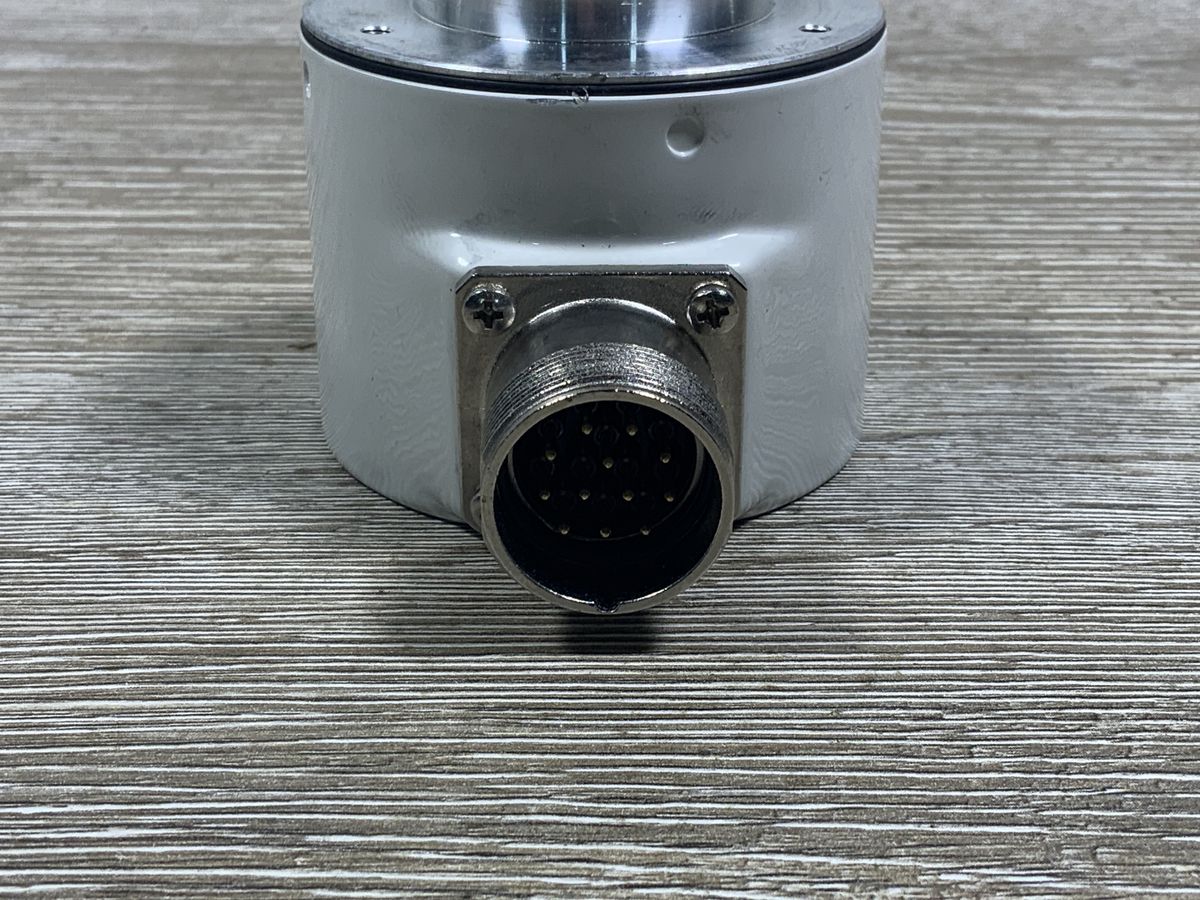

The Hengstler RI58-O/360EK.42IH is an industrial incremental rotary encoder designed for precise position and speed measurement in motion control applications. It features a 10 mm solid shaft, 360 PPR resolution, and operates on a supply voltage range of 10 to 30 VDC. The encoder is equipped with a heavy-duty housing and a multi-pin industrial connector for secure wiring in industrial environments.

Specifications – RI58-O/360EK.42IH

Parameter	Specification
Part Number	0 525 560
Type	Incremental Rotary Encoder
Resolution	360 PPR
Supply Voltage	10...30 VDC
Current Rating	100 mA
Shaft Type	Solid shaft (10 mm)
