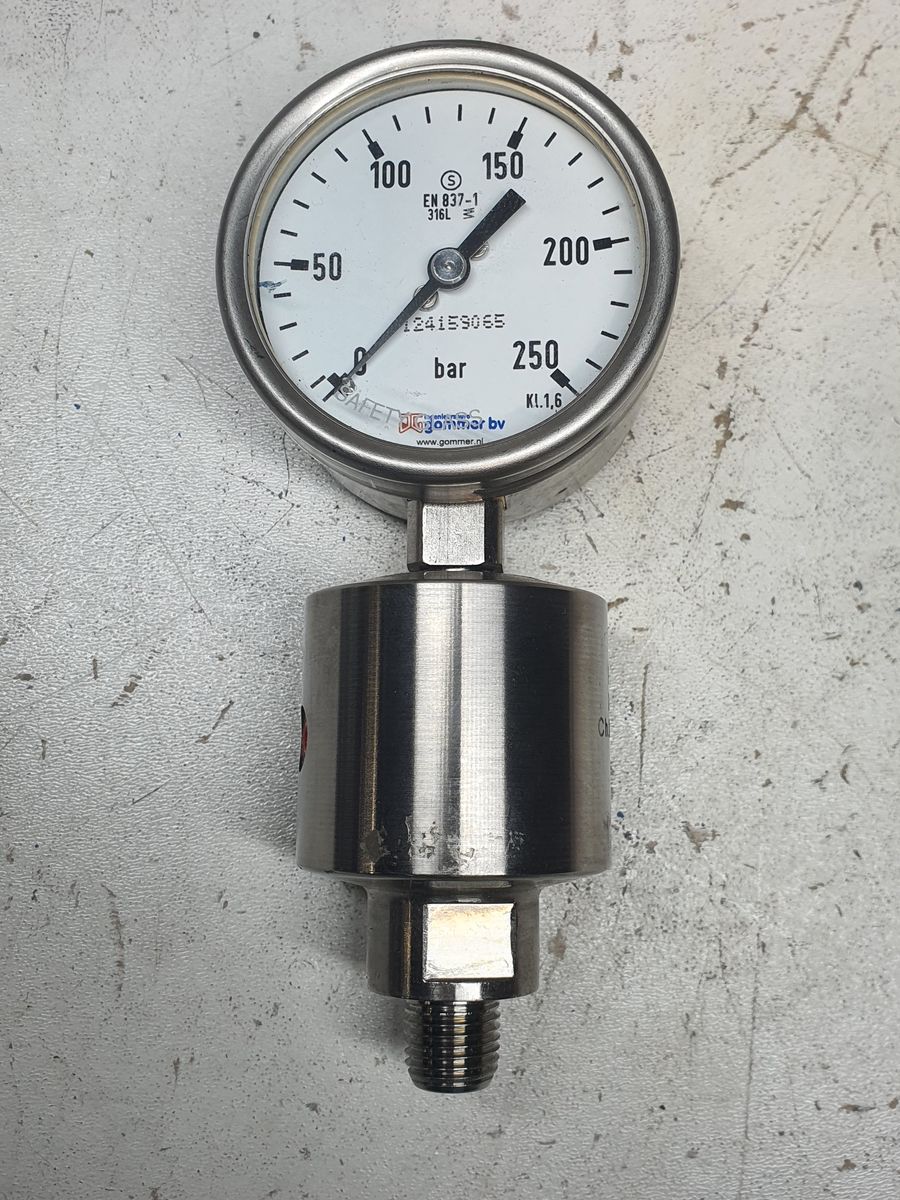

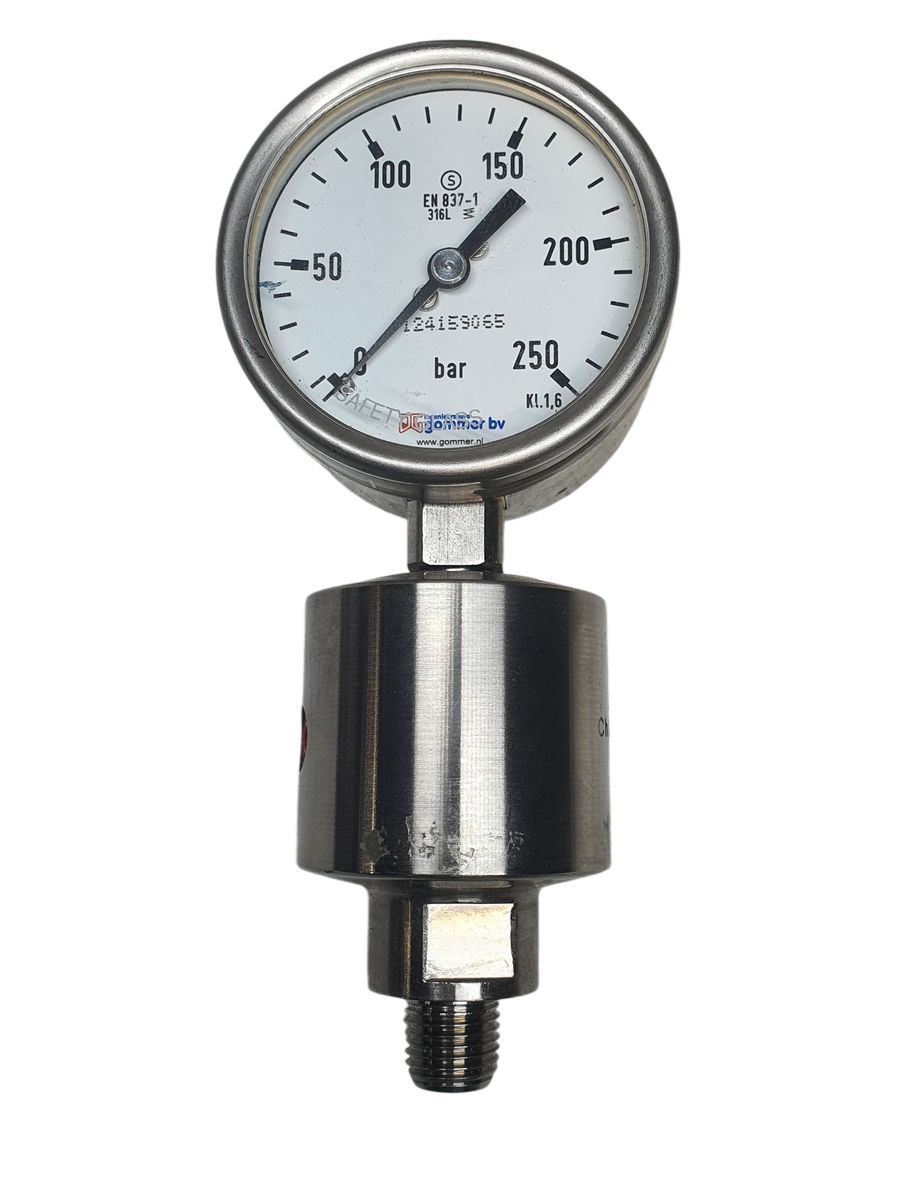

Gommer BV Pressure Gauge 0-250 bar with PN600 Diaphragm Seal

SKU: 6033

Laos

Kasutatud
Saadud töökeskkonnast

Hind päringu alusel

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud 3 kuud

Kasutatud DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

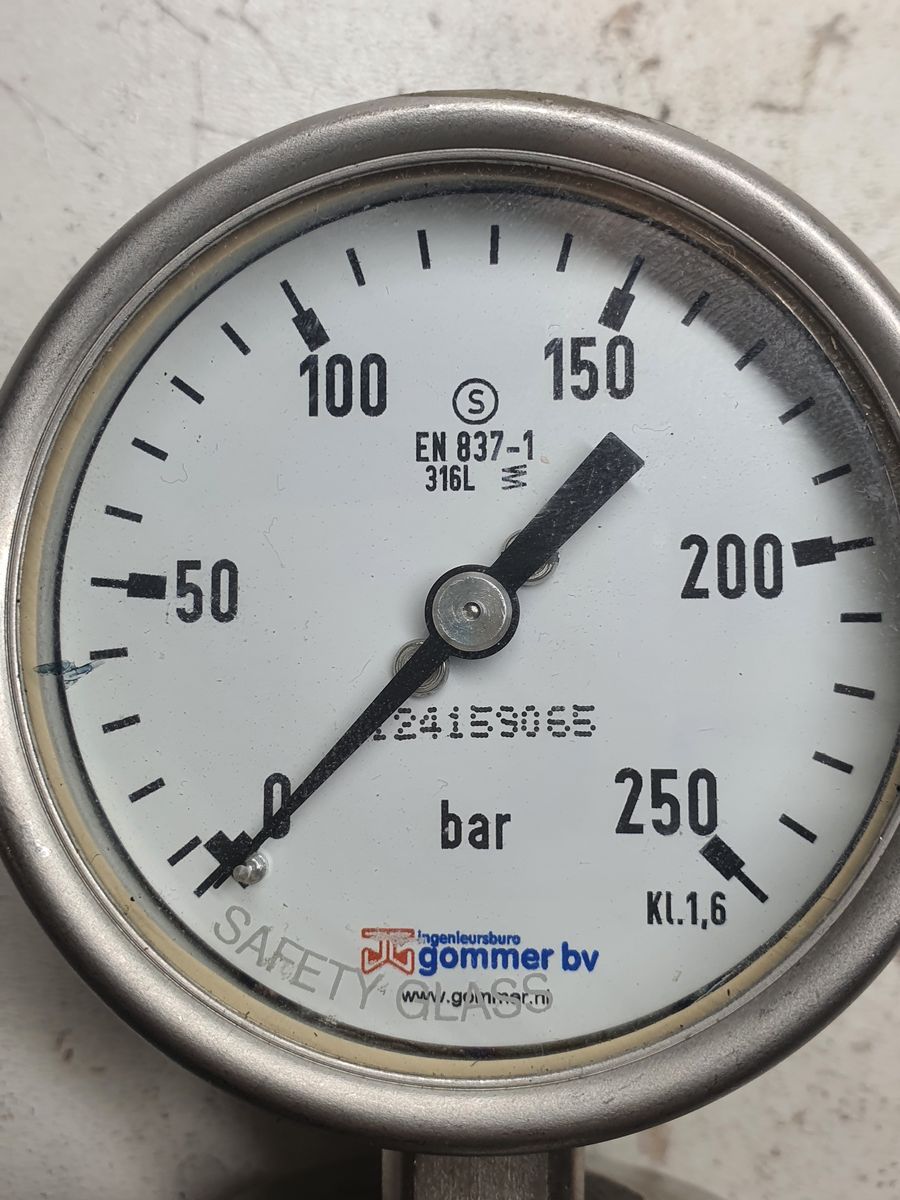

Gommer BV pressure gauge 0-250 bar

Parameter	Specification
Brand	Gommer BV
Standard	EN837‑1
Nominal Size (Dial Diameter)	63 mm
Measuring Range	0–250 bar
Accuracy Class	1.0 (±1% of full scale)
Wetted Parts Material	316L stainless steel (1.4404)
Housing	Stainless steel, robust industrial design
Window	Laminated safety glass (Type 4)
Connection	Bottom mount, threaded, typically G1/2B
Pressure Element	Bourdon tube (stainless steel)
Ambient Temperature Range	–20 °C to +60 °C (typical)
Medium Temperature Range	Refer to manufacturer; application dependent
Protection	Varies by design; optional safety features available

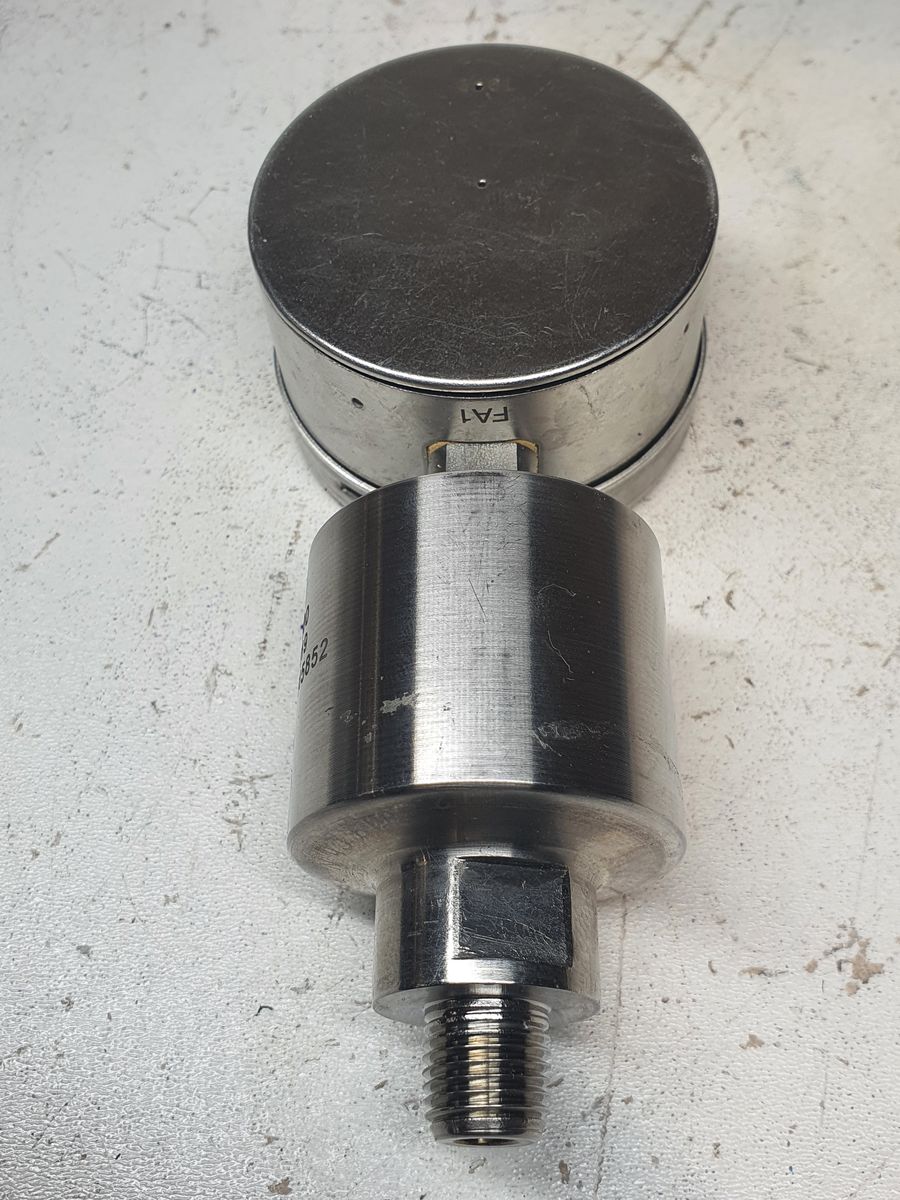

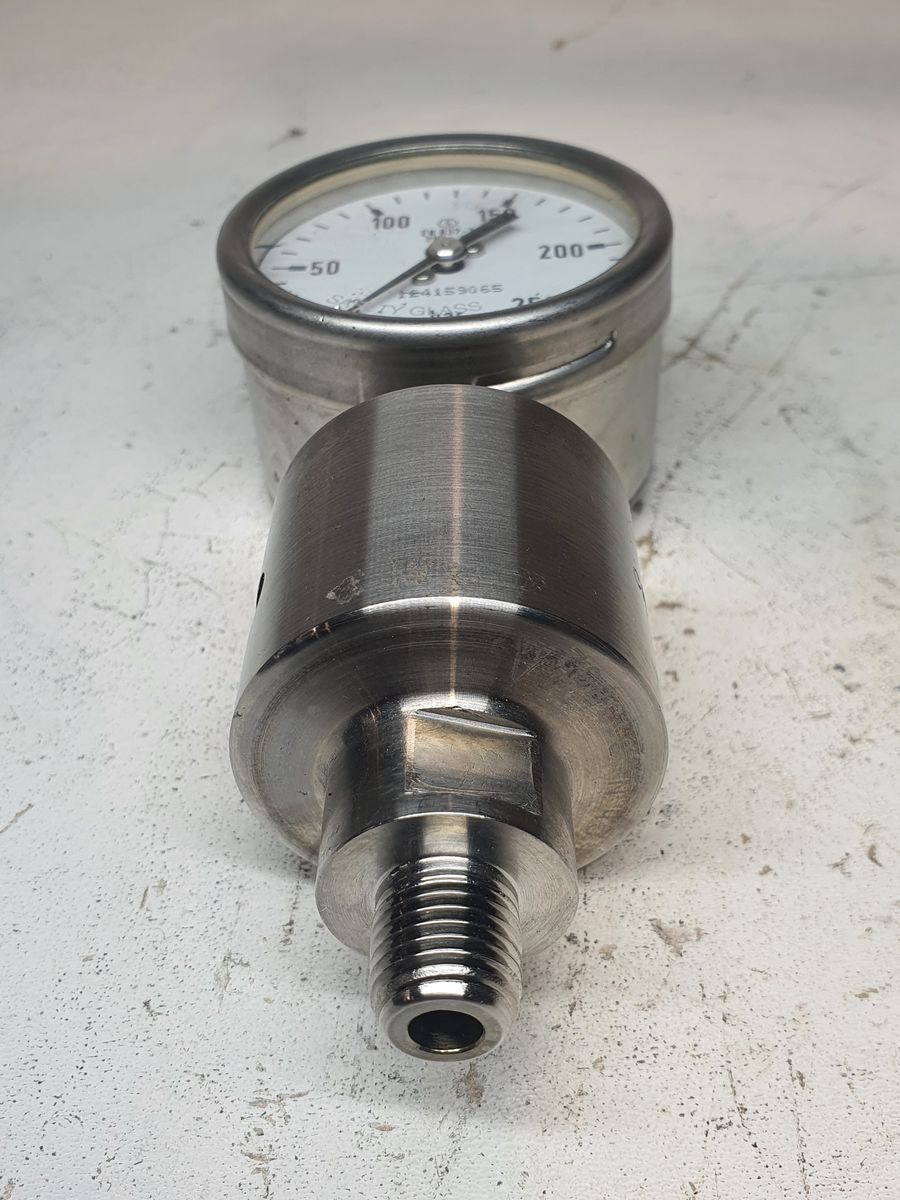

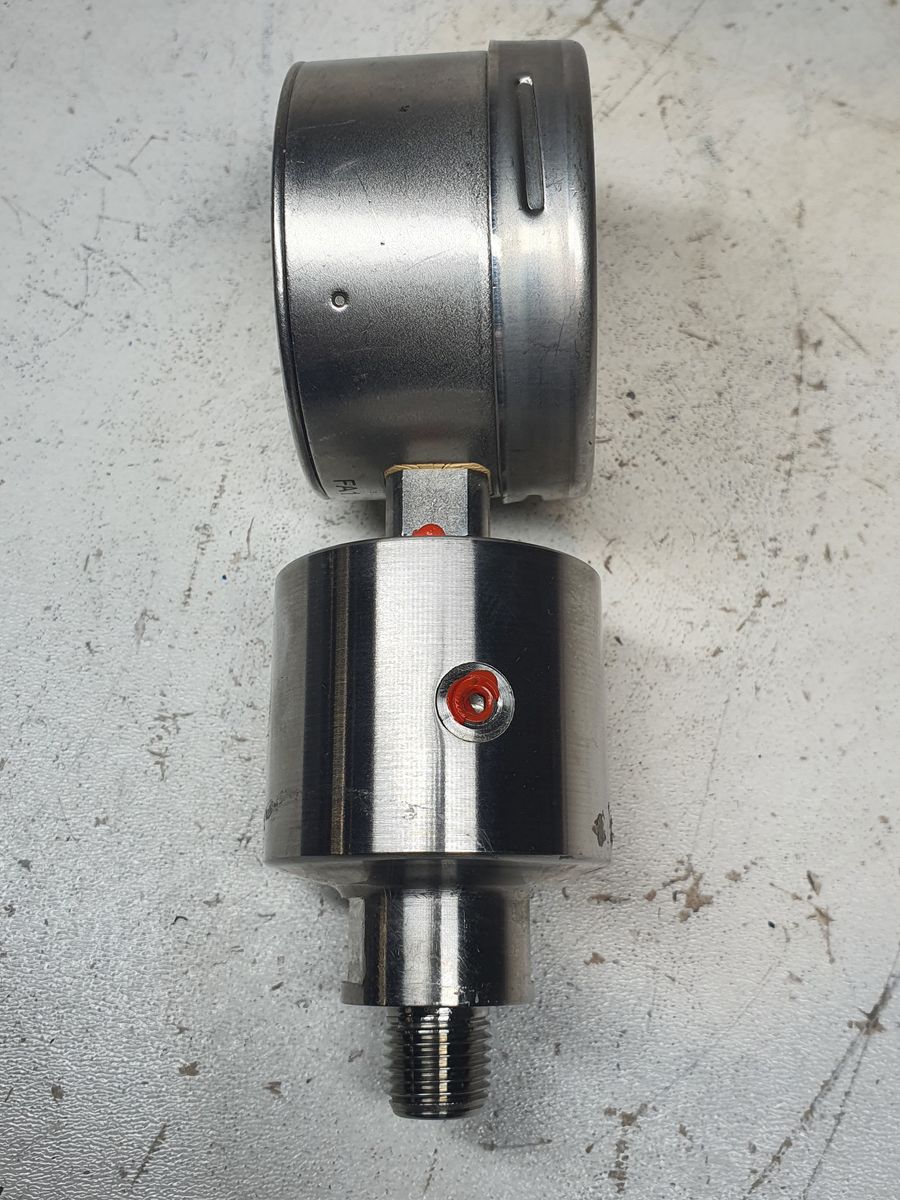

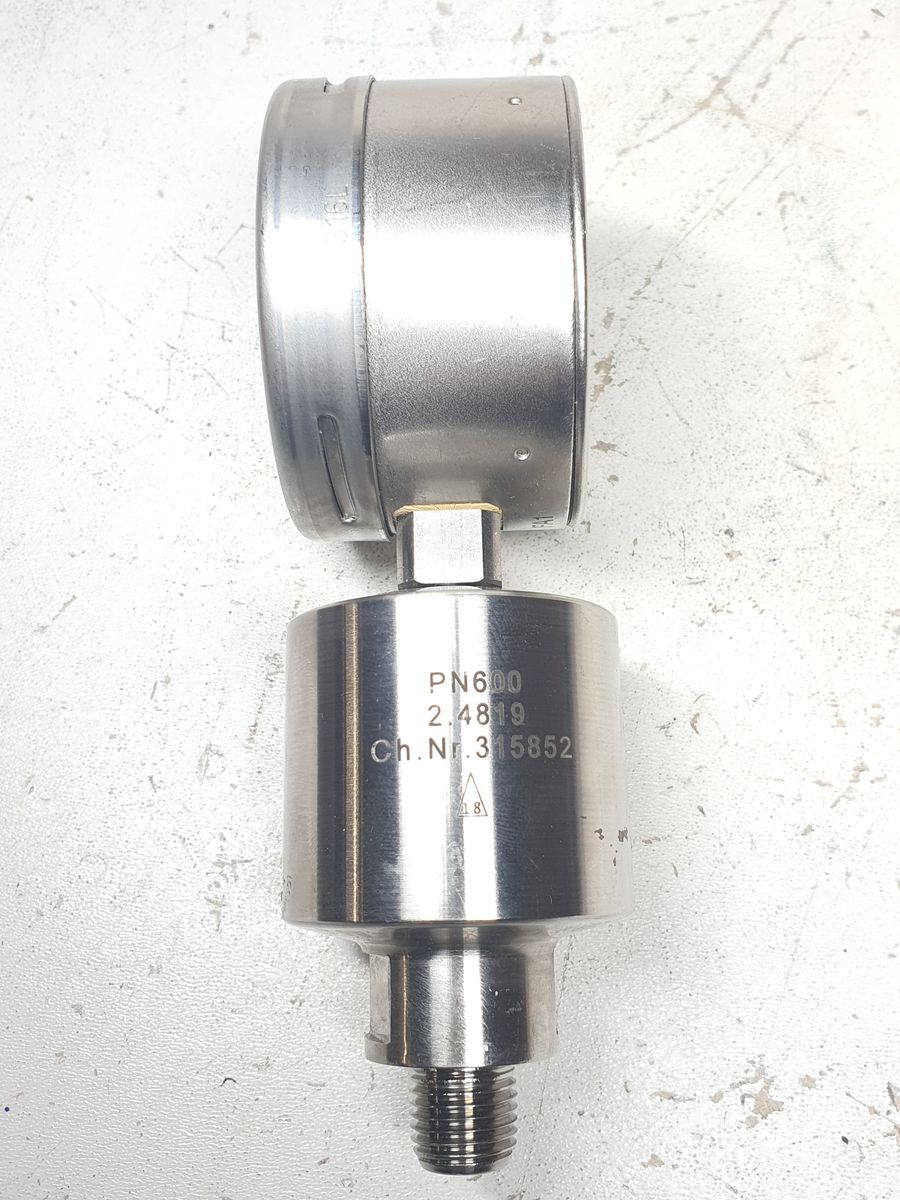

Mounting	Bottom threaded connection connected with PN600 wetted part
