Solenoid Ventilid

Festo JMFH-5-1/2

SKU: 55003

Laos

Vali seisund

Used

Ilma KM-ta: €85,00 (1 saadaval)

K.a. KM: €102,85

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Kvaliteedi garantii teave

Tähtis: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiiperioodid vastavalt tingimustele

Uus 12 kuud

Renoveeritud 6 kuud

Kasutatud 3 kuud

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Kirjeldus

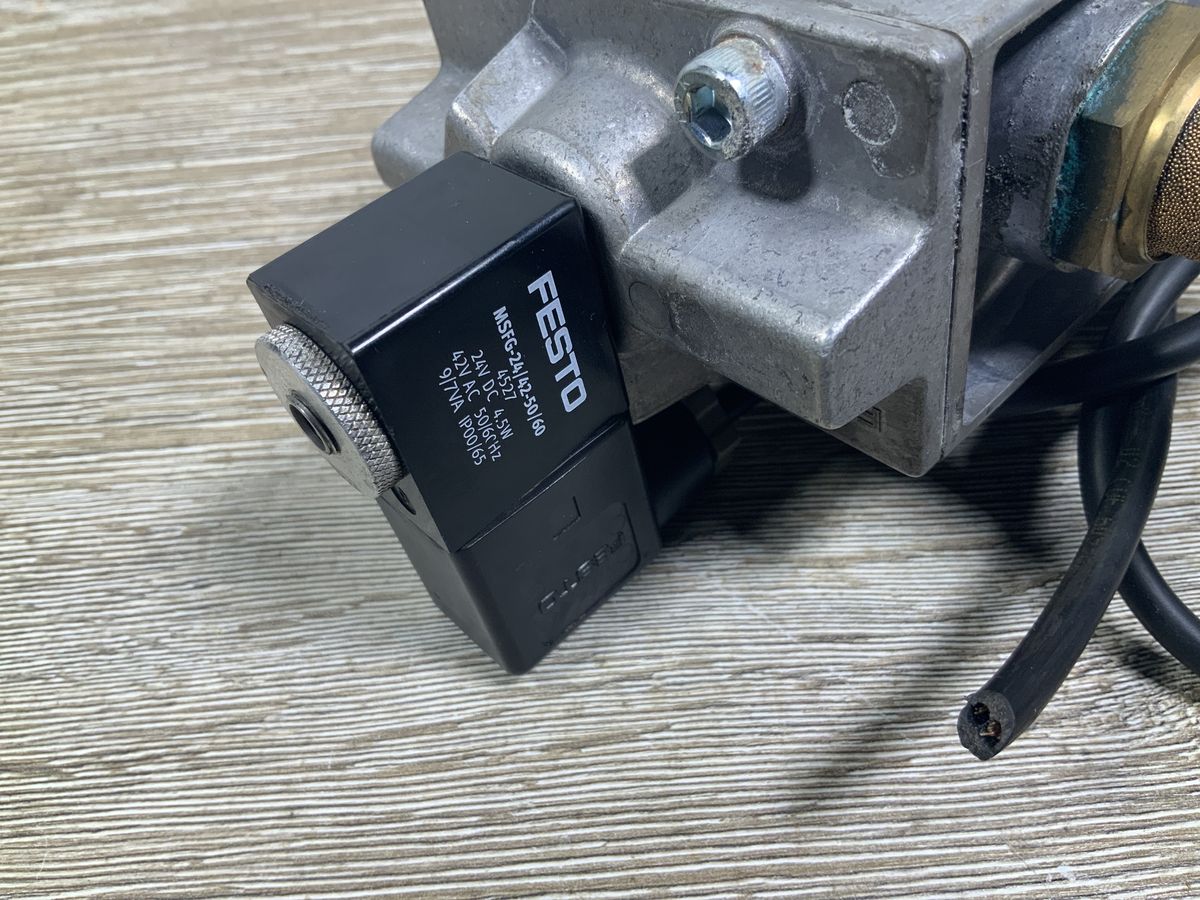

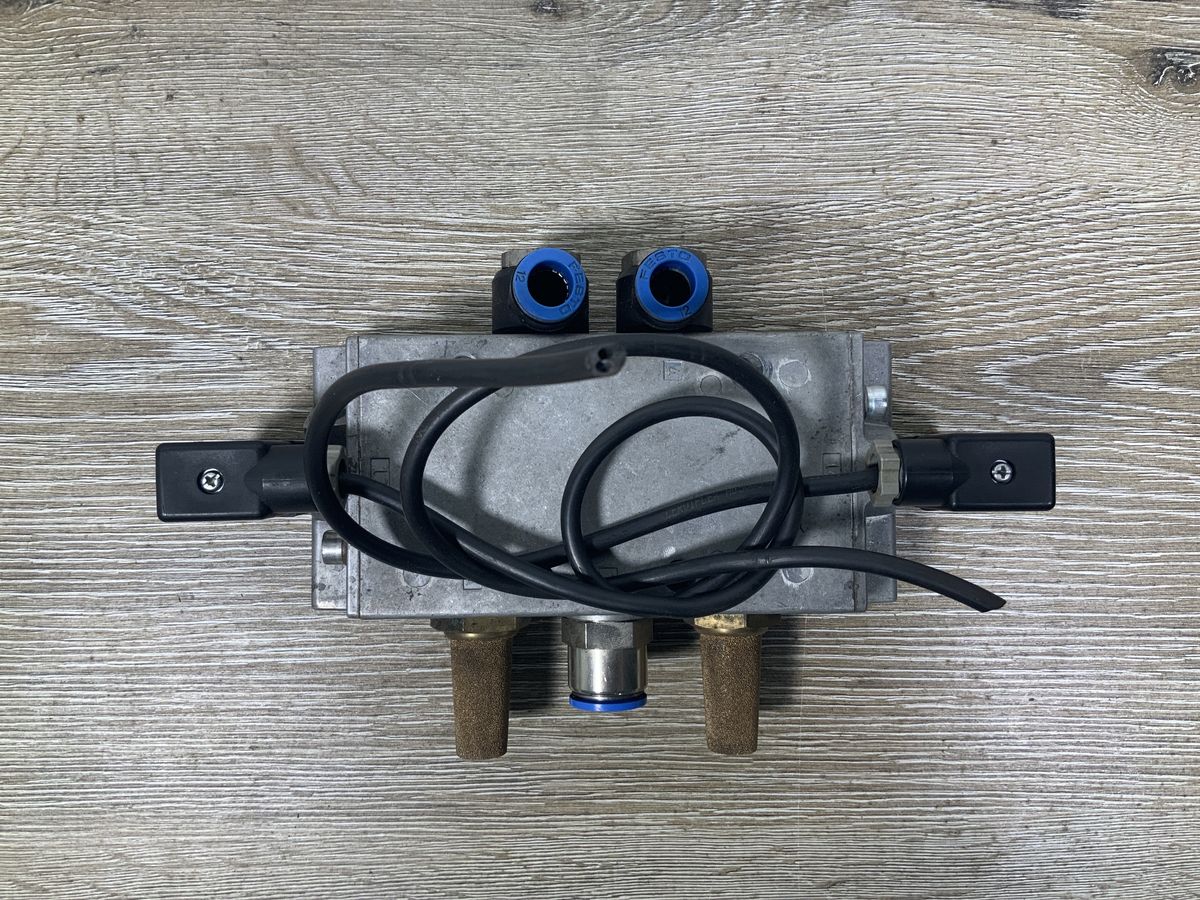

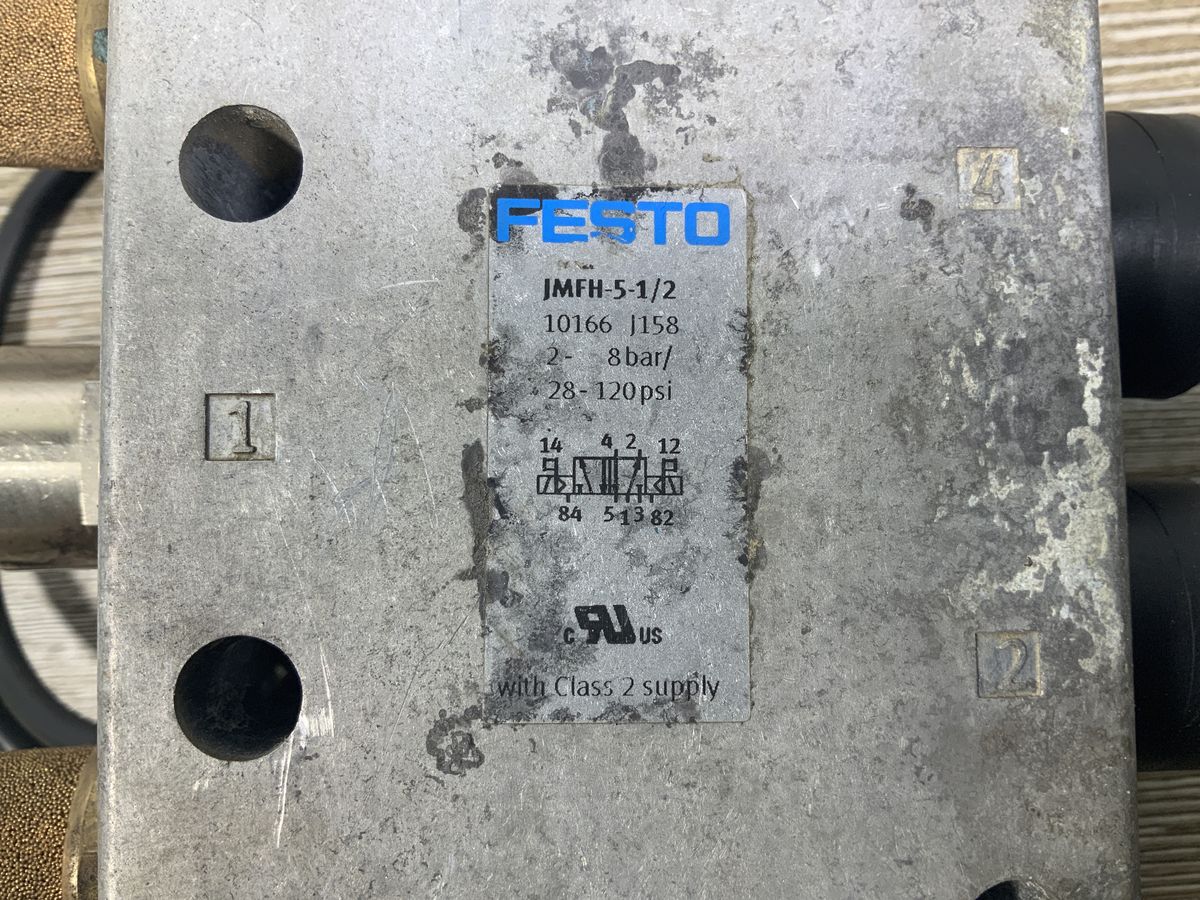

The Festo JMFH-5-1/2 is a 5/2-way bistable double solenoid valve designed for pilot-operated direction control of double-acting pneumatic actuators. It features G1/2 threaded pneumatic working ports and a standard nominal flow capacity of 4,500 L/min across an operating pressure range of 2 to 8 bar. This assembly includes two attached Festo MSFG-24/42-50/60 solenoid coils operating on 24V DC / 42V AC.

Specifications – JMFH-5-1/2

Parameter	Specification
Valve Function	5/2-Way Bistable Double Solenoid
Part Number	10166
Operating Pressure	2 - 8 bar / 28 - 120 psi
Port Connection	G 1/2
Solenoid Coil Model	MSFG-24/42-50/60
Coil Voltage	24V DC / 42V AC (50/60 Hz)
Power Consumption	4.5 W (DC) / 9/7 VA (AC)
Degree of Protection	IP00/65
